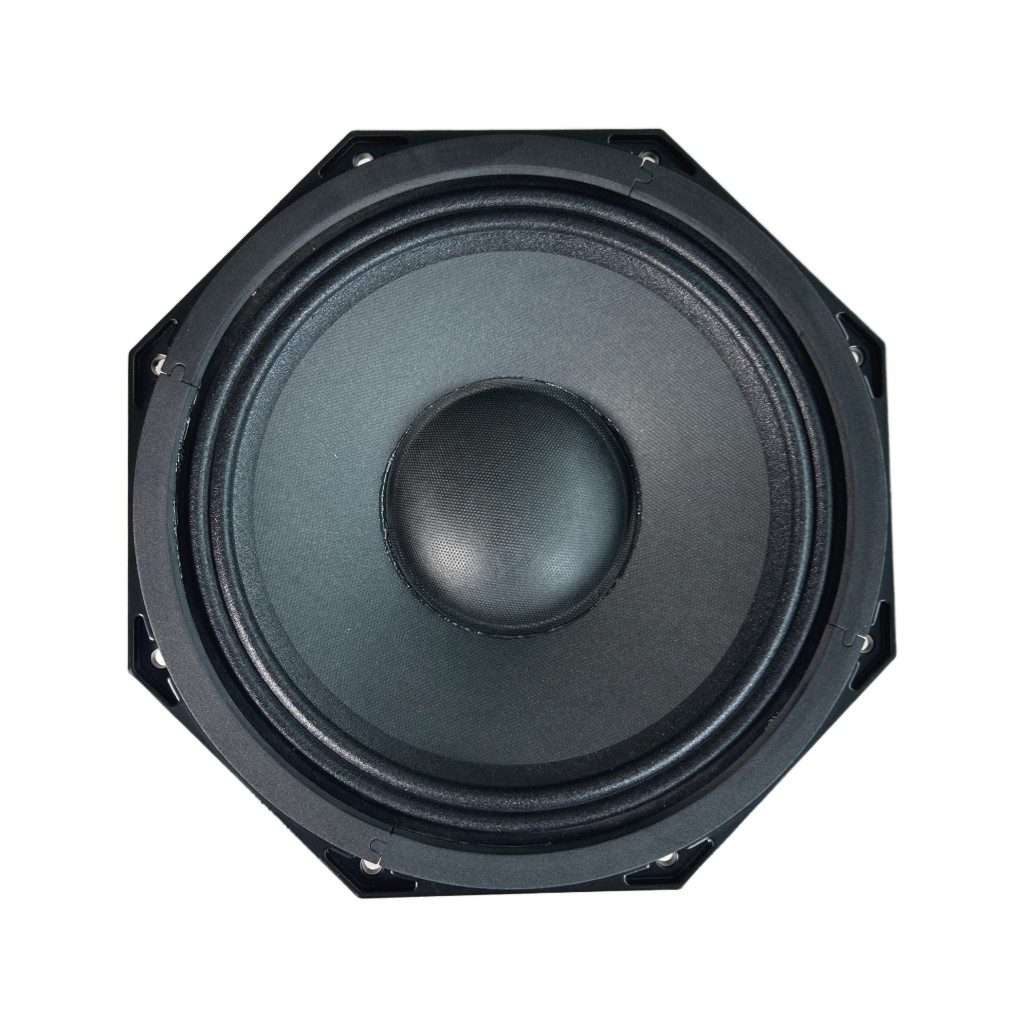

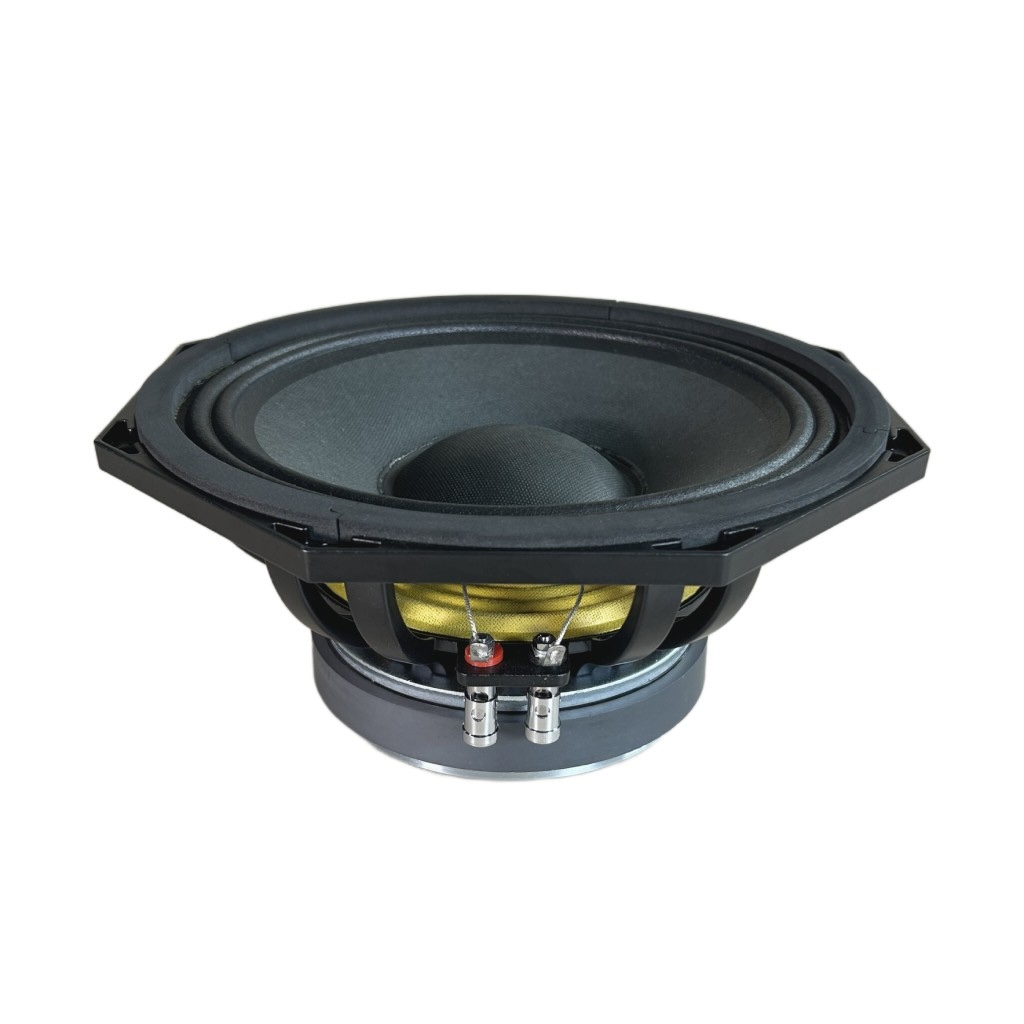

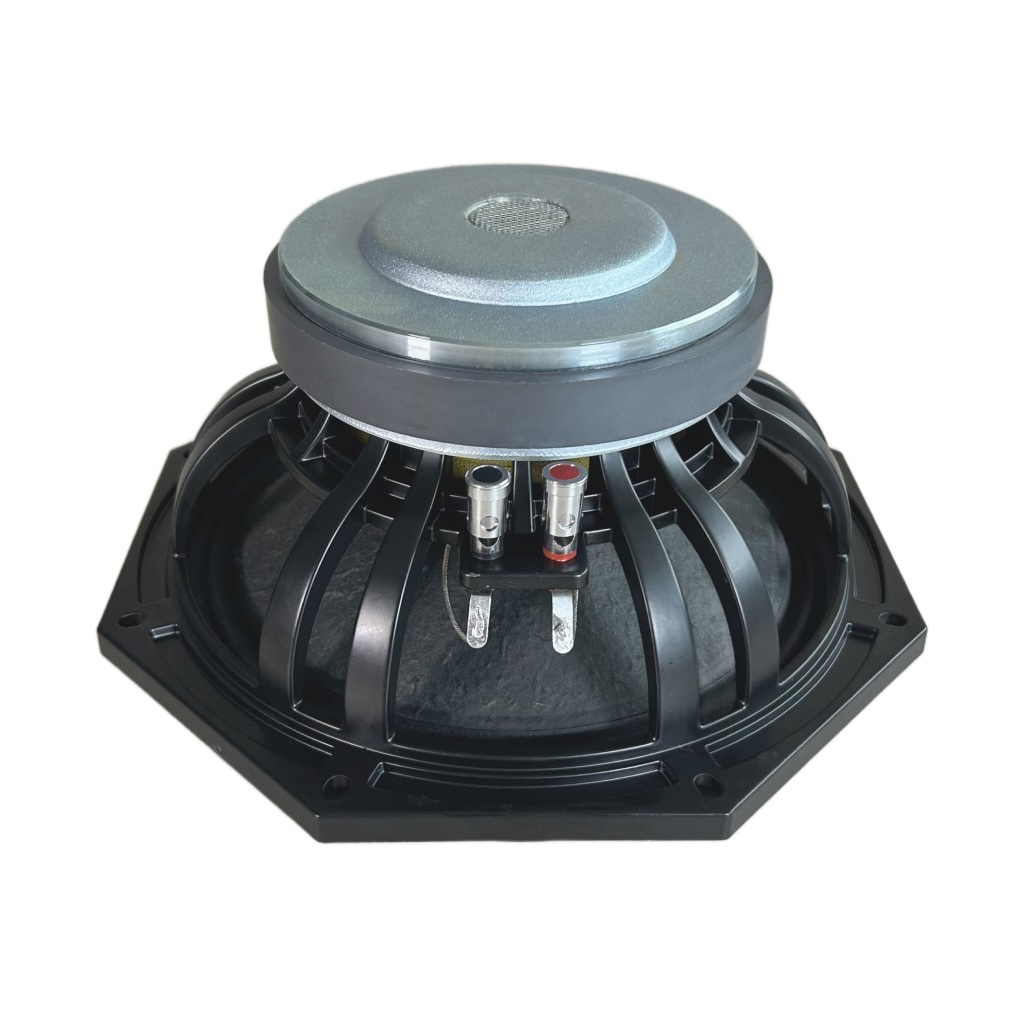

SPW-1050AC 10" Woofer
- 2 INCH ROUND COPPER VOICE COIL
- 96 dB/SPL SENSITIVITY
- 200 WATT RMS
- 55 - 2500 Hz FREQUENCY RESPONSE
GENERAL SPECIFICATIONS
| Nominal diameter | 10 inch |
|---|---|
| Nominal impedance | 8 Ω |
| Magnet weight | 50 oz |
| Power rating | 200W RMS |
| Peak power | 400W |
| Sensitivity | 96.0 dB |
| Frequency range | 55~2500 Hz |
| Voice coil diameter | 2 inch |
| Basket material | Die Cast Aluminum |
| Magnet material | Ferrite |
| Coil material | Round Copper |
| Former material | Aluminum |
| Cone material | Paper |
| Surround material | Cloth |
THIELE-SMALL PARAMETERS
| DC resistance(Re) | 6.9 Ω |
|---|---|
| Resonance frequency(Fs) | 58.5 Hz |
| Moving mass(Mms) | 38.3 g |
| Compliance(Cms) | 0.19 mm/N |
| Force factor(BL) | 14.57 N/A |
| Mechanical Q-factor(Qms) | 3.54 |
| Electrical Q-factor(Qes) | 0.46 |
| Total Q-factor(Qts) | 0.41 |
| Equivalent air volume(Vas) | 33.7 L |
| Voice coil Inductance(Le) | |
| Diaphragm area(Sd) | 350 cm² |
DIMENSIONS & WEIGHT
| Multipack quantity | 4 |
|---|---|
| Multipack size W x D x H | 58.5 cm × 30 cm × 34 cm |
| Multipack weight | 20 kg |

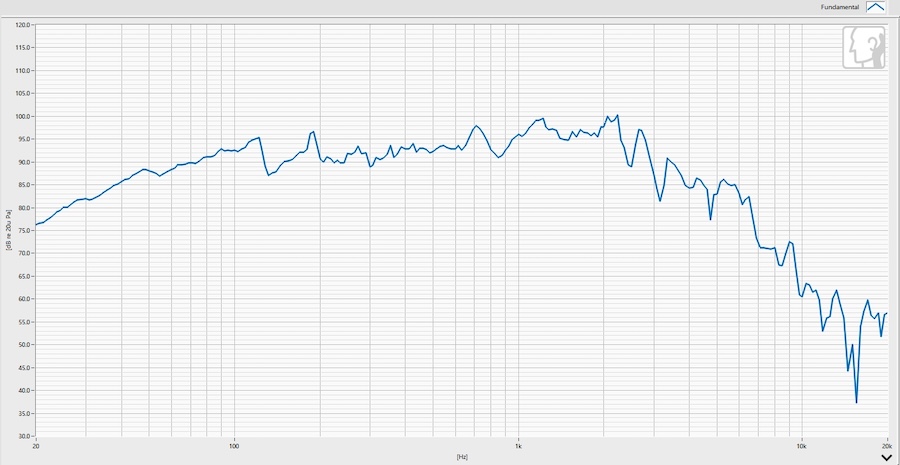

Frequency Response

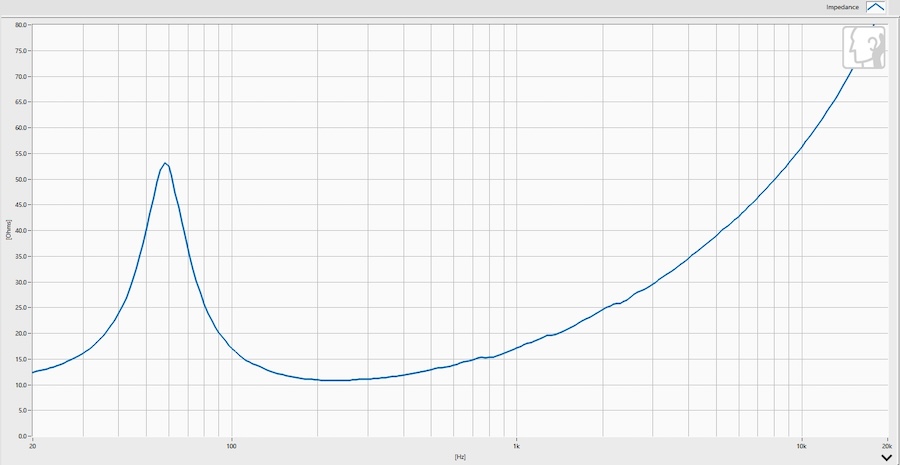

Impedence Curve
Dimensions
