SPW-1040AR1 10" Subwoofer
- 1.5 INCH ROUND COPPER VOICE COIL
- 88 dB/SPL SENSITIVITY
- 200 WATT RMS
- 36 - 2500 Hz FREQUENCY RESPONSE
GENERAL SPECIFICATIONS
| Nominal diameter | 10 inch |
|---|---|
| Nominal impedance | 8 Ω |
| Magnet weight | 40 oz |
| Power rating | 200W RMS |
| Peak power | 400W |
| Sensitivity | 88 dB |
| Frequency range | 36~2500 Hz |
| Voice coil diameter | 1.5 inch |
| Basket material | Die Cast Aluminum |
| Magnet material | Ferrite |
| Coil material | 4-Layer Round Copper |
| Former material | Aluminum |
| Cone material | Poly-Mica |
| Surround material | Rubber |
THIELE-SMALL PARAMETERS
| DC resistance(Re) | 7.7 Ω |
|---|---|
| Resonance frequency(Fs) | 36.1 Hz |
| Moving mass(Mms) | 57.29 g |
| Compliance(Cms) | 0.34 mm/N |
| Force factor(BL) | 15.7 N/A |
| Mechanical Q-factor(Qms) | 6.19 |
| Electrical Q-factor(Qes) | 0.41 |
| Total Q-factor(Qts) | 0.38 |
| Equivalent air volume(Vas) | 59.1 L |
| Voice coil Inductance(Le) | |
| Diaphragm area(Sd) | 350 cm² |
DIMENSIONS & WEIGHT
| Multipack quantity | 6 |
|---|---|
| Multipack size W x D x H | 58.5 cm x 30 cm x 51 cm |
| Multipack weight | 22 kg |

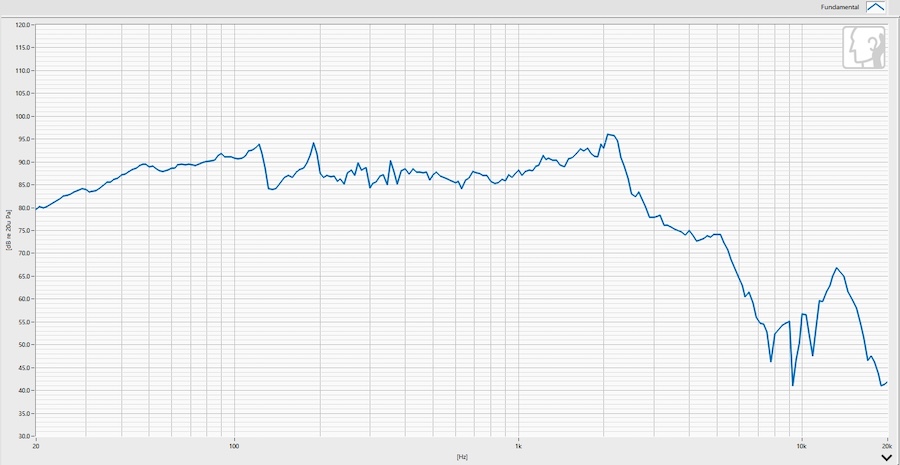

Frequency Response

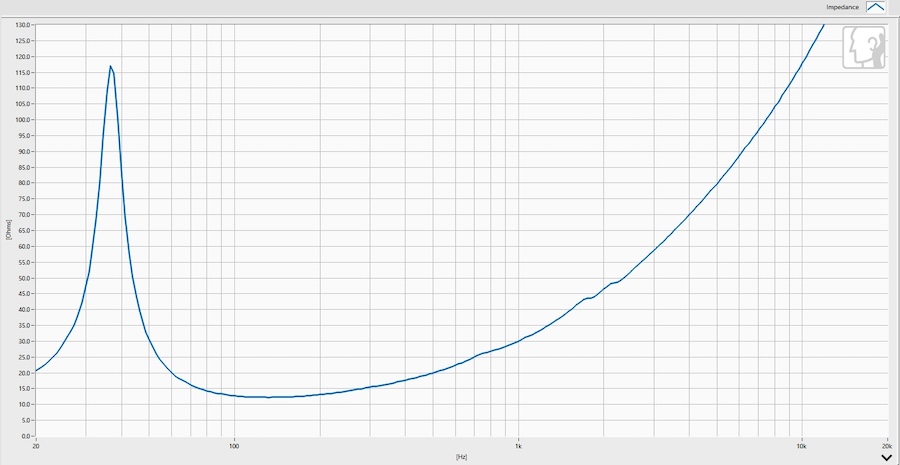

Impedence Curve

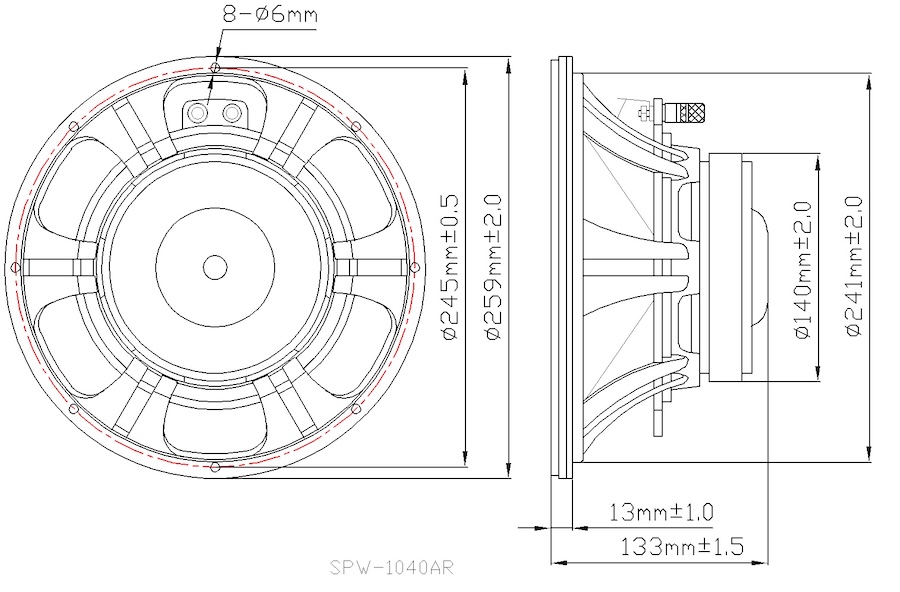

Dimensions
