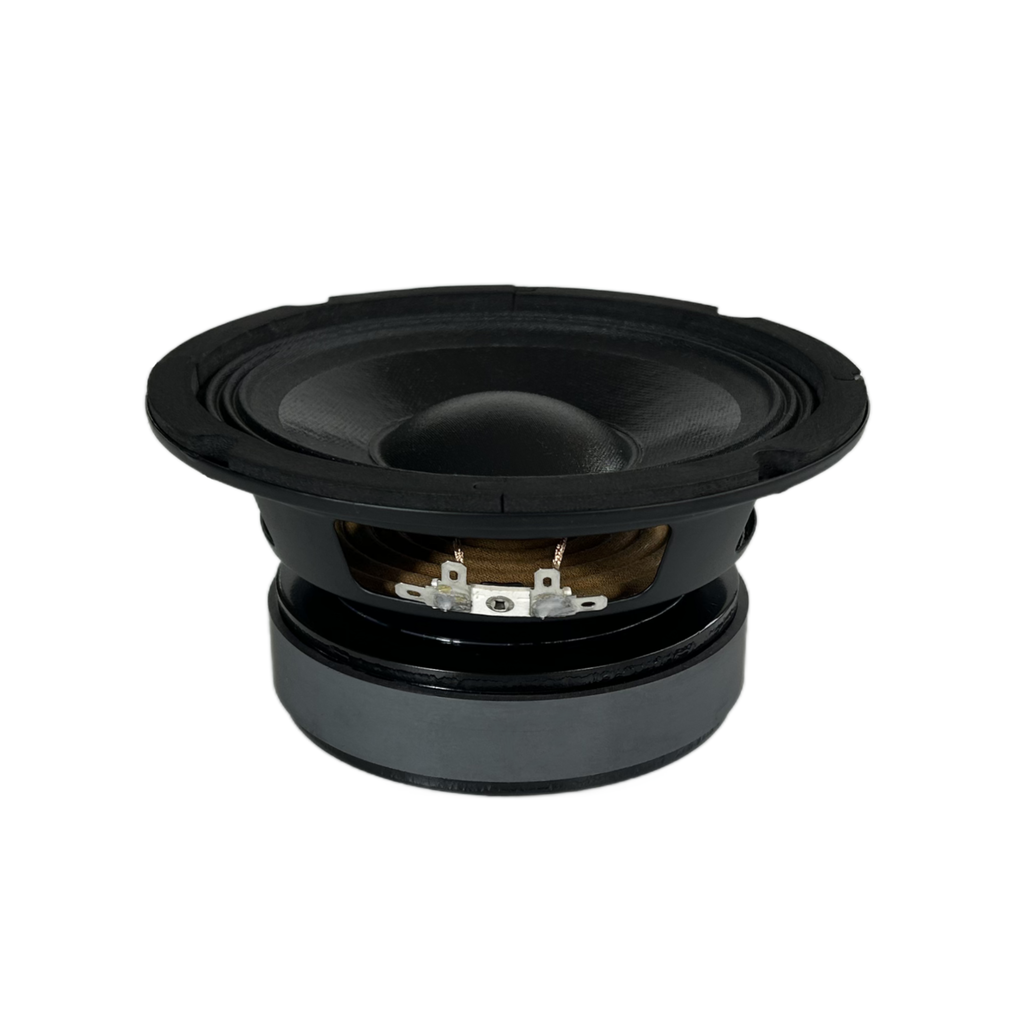

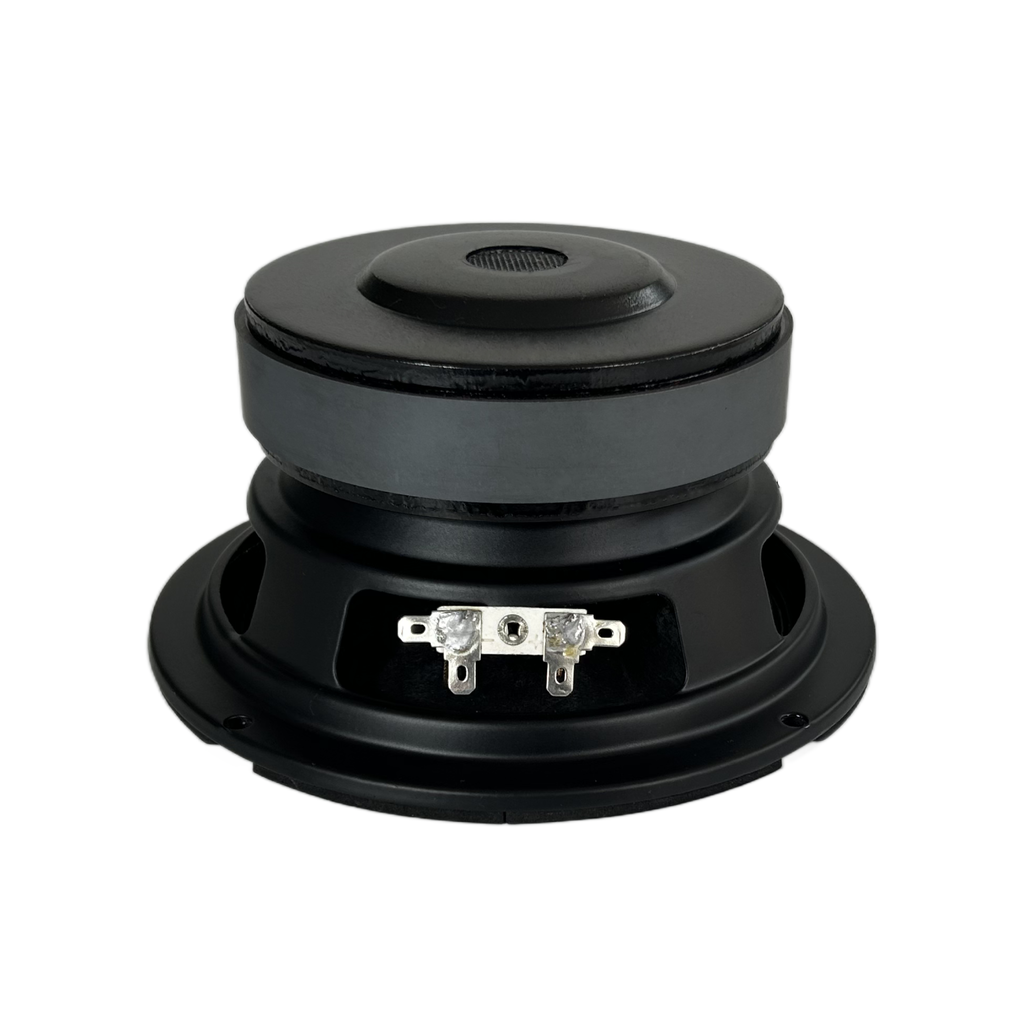

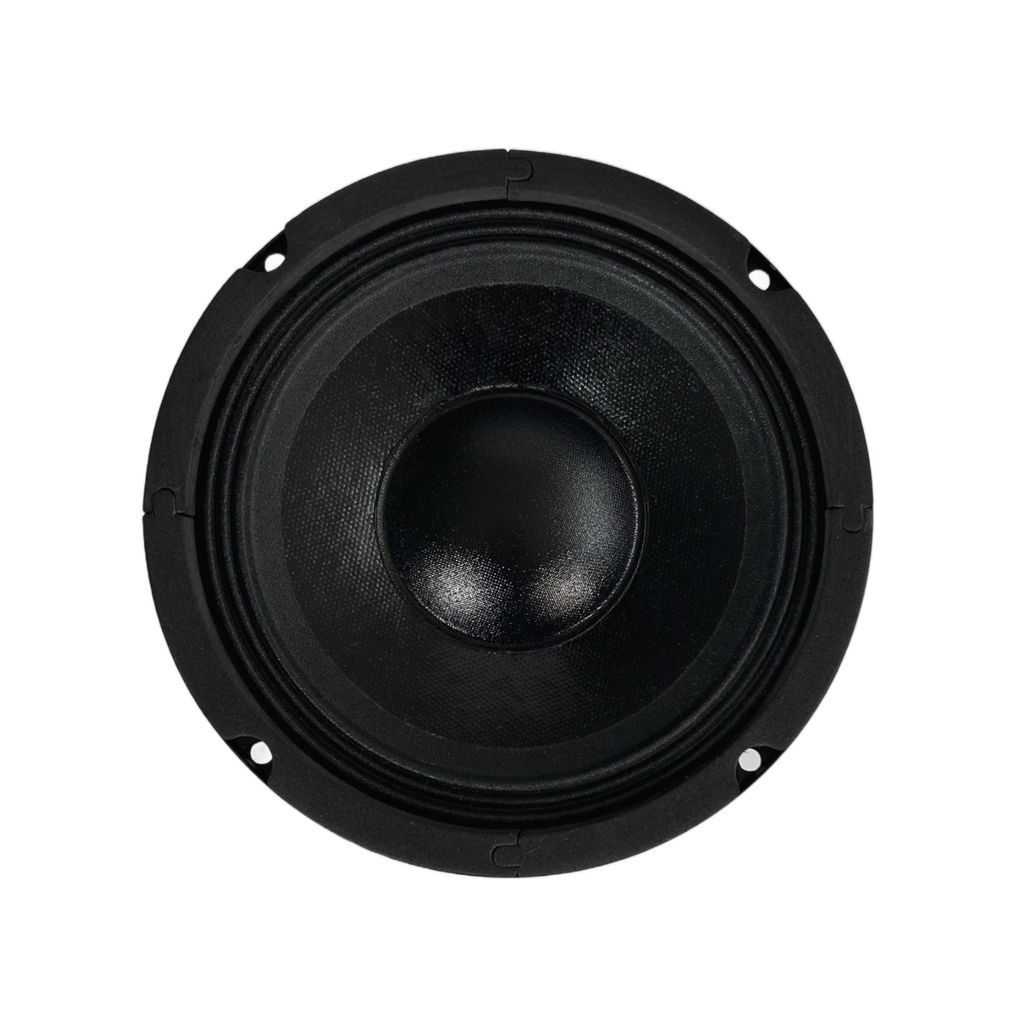

SPW-630SC 6.5 Inch Woofer
- 1 INCH ROUND COPPER VOICE COIL
- 88.4 dB/SPL SENSITIVITY
- 120 WATT RMS
- 90 - 5000 Hz FREQUENCY RESPONSE
- 松压盆
GENERAL SPECIFICATIONS
| Nominal diameter | 6.5 inch |
|---|---|
| Nominal impedance | 8 Ω |
| Magnet weight | 30 oz |
| Power rating | 100W RMS |
| Peak power | 200W |
| Sensitivity | 88.4 dB |
| Frequency range | 90~5000 Hz |
| Voice coil diameter | 1 inch |
| basket material | Steel |
| Magnet material | Ferrite |
| Coil material | Round Copper |
| Former material | Aluminum |
| Cone material | Paper |
| Surround material | Cloth |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 7.0 Ω |
|---|---|
| Resonance frequency(Fs) | 119.7 Hz |
| Moving mass(Mms) | 12.7 g |
| Compliance(Cms) | 0.14 mm/N |
| Force factor(BL) | 6.7 N/A |
| Mechanical Q-factor(Qms) | 6.19 |
| Electrical Q-factor(Qes) | 1.49 |
| Total Q-factor(Qts) | 1.20 |
| Equivalent air volume(Vas) | 3.9 L |
| Voice coil Inductance(Le) | 0.30 mH |
| Diaphragm area(Sd) | 141.0 cm² |

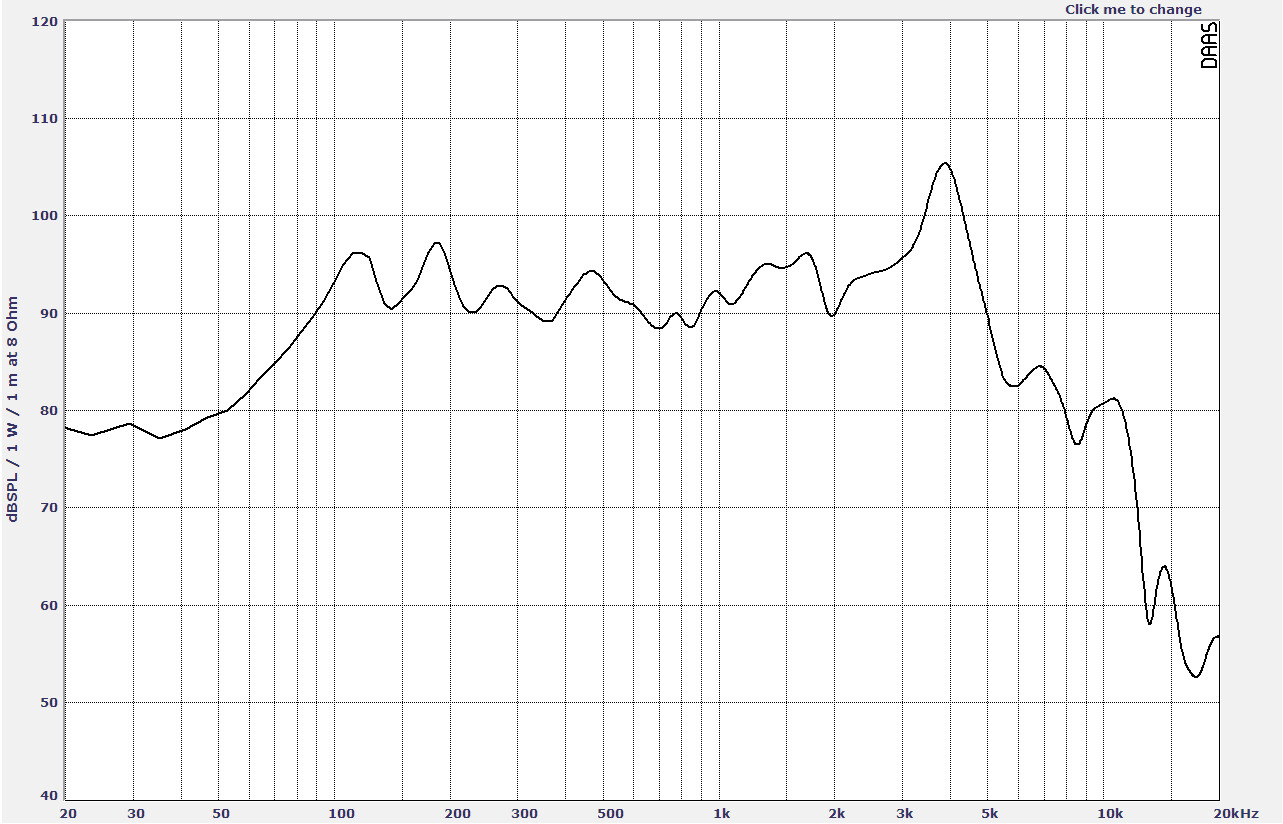

Frequency Response

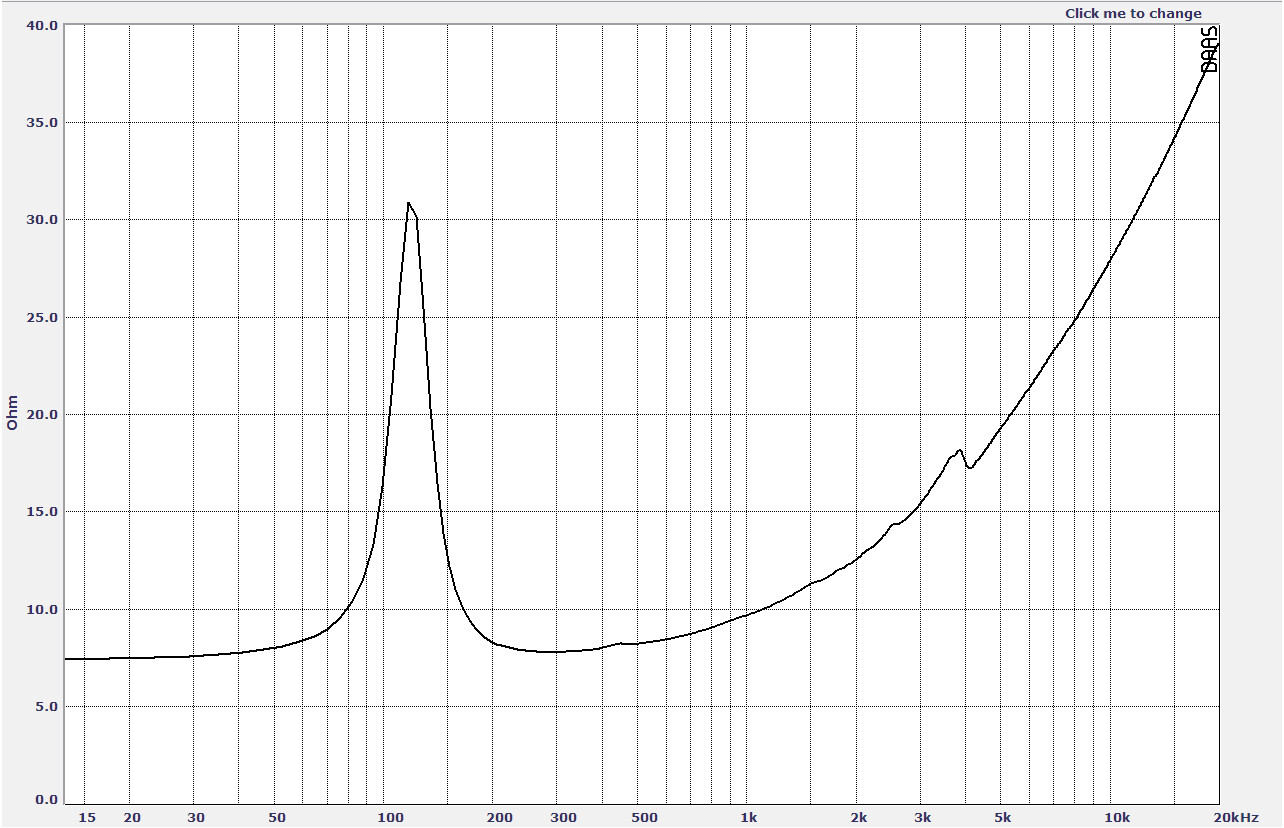

Impedence Curve

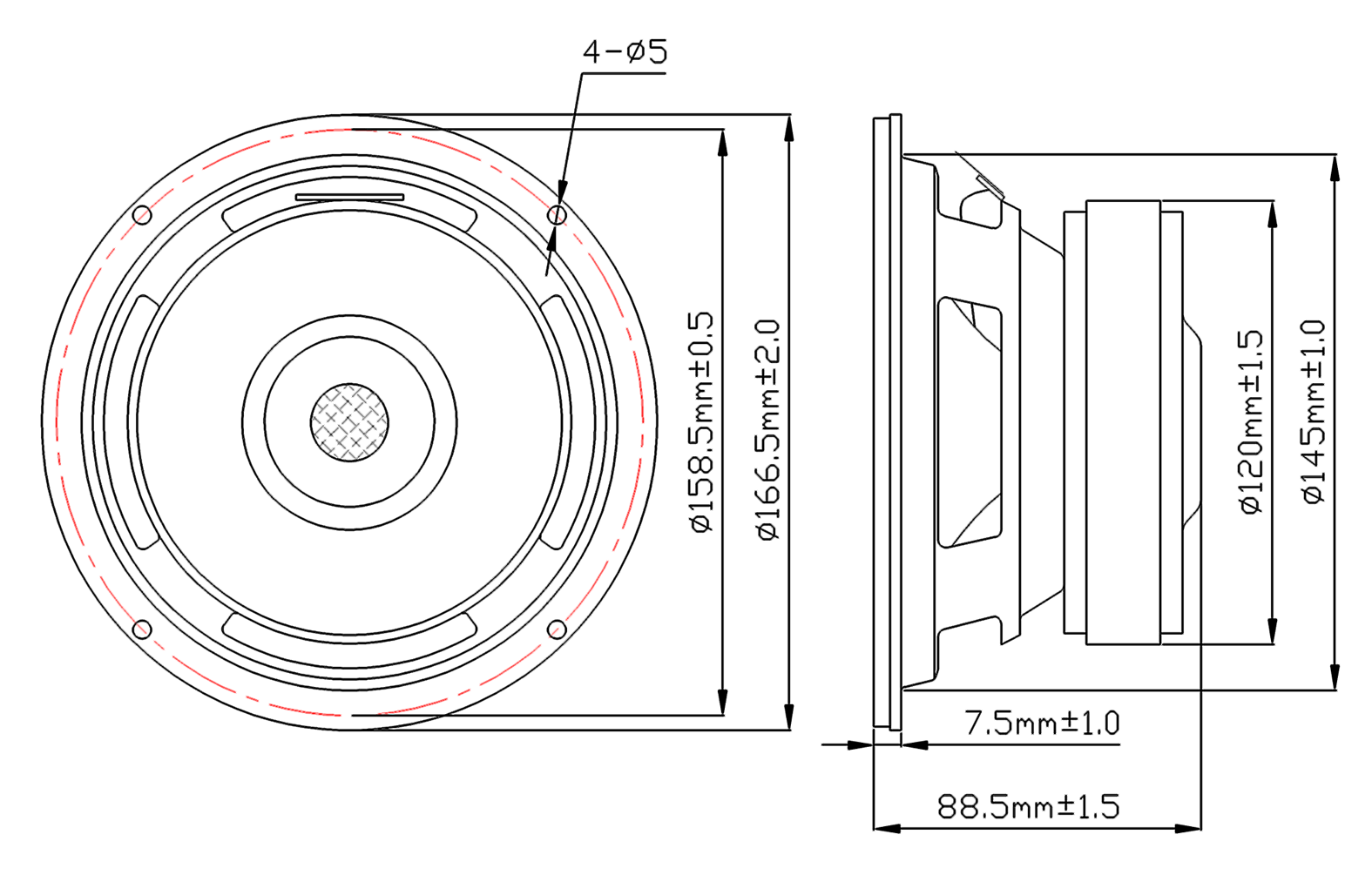

Dimensions
