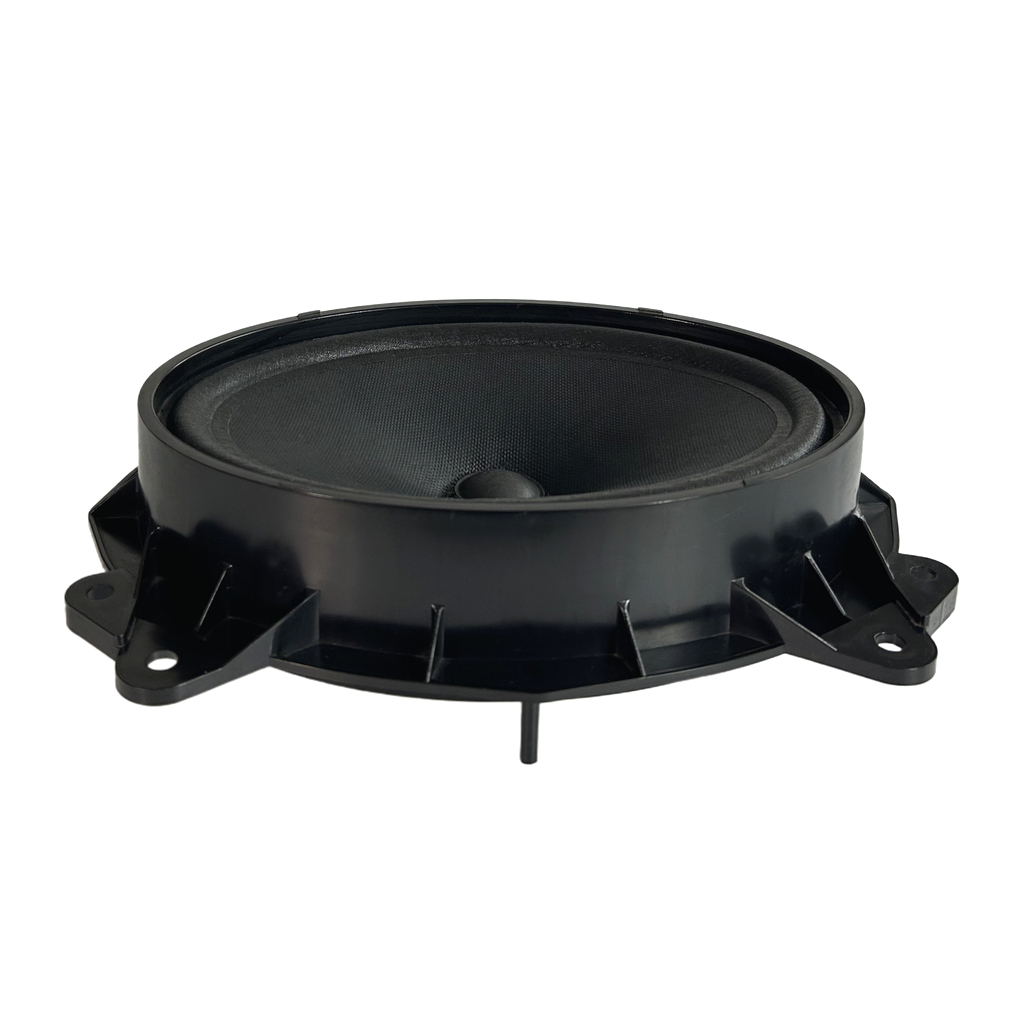

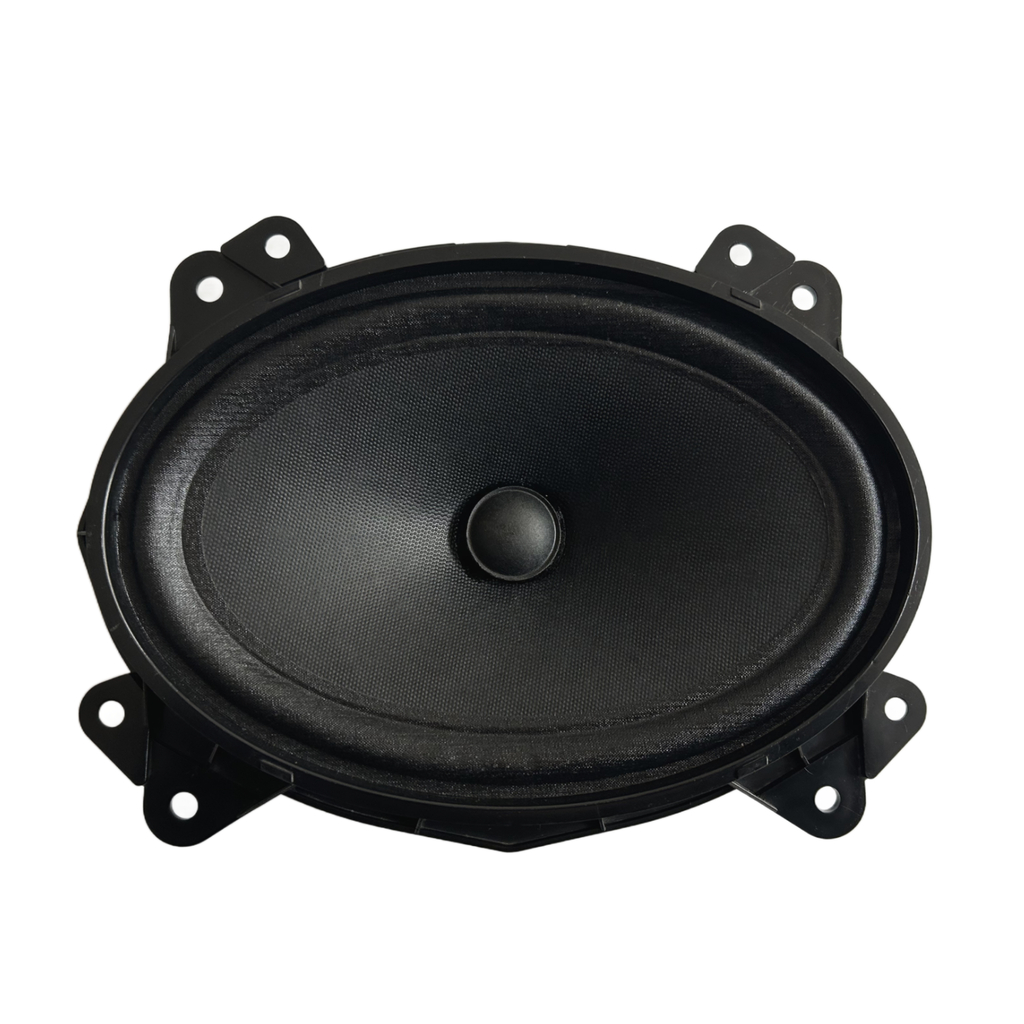

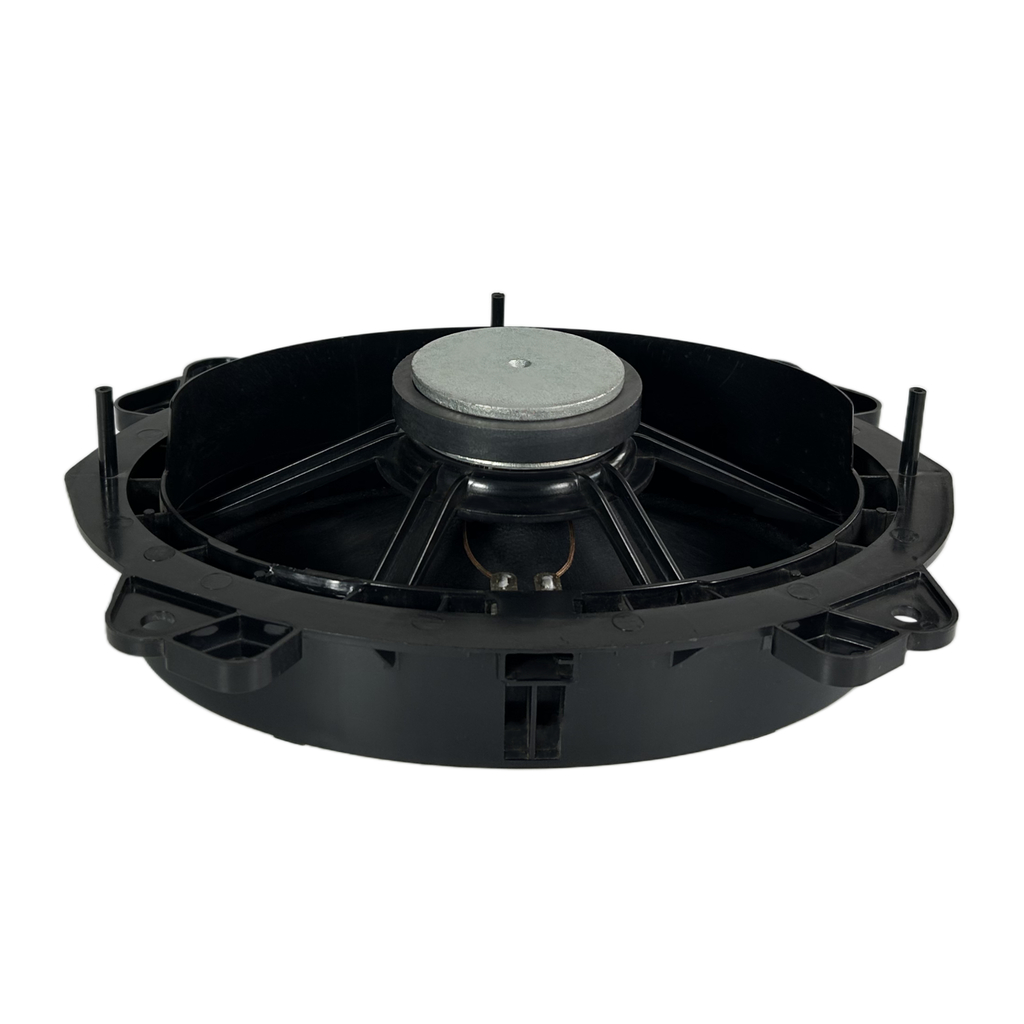

SPW-1623PC 6x9 inch Car Speaker
- 1 INCH ROUND COPPER VOICE COIL
- 94.7 dB/SPL SENSITIVITY
- 100 WATT RMS
- 100 - 11000 Hz FREQUENCY RESPONSE
GENERAL SPECIFICATIONS
| Nominal diameter | 6x9 inch |
|---|---|
| Nominal impedance | 4 Ω |
| Magnet weight | 6.5 oz |
| Power rating | 80W RMS |
| Peak power | 160W |
| Sensitivity | 94.7 dB |
| Frequency range | 100~11000 Hz |
| Voice coil diameter | 1 inch |
| basket material | Plastic |
| Magnet material | Ferrite |
| Coil material | Round Copper |
| Former material | Kapton |
| Cone material | Paper |
| Surround material | Cloth |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 4.3 Ω |
|---|---|
| Resonance frequency(Fs) | 129.3 Hz |
| Moving mass(Mms) | 12.9 g |
| Compliance(Cms) | 0.12 mm/N |
| Force factor(BL) | 3.7 N/A |
| Mechanical Q-factor(Qms) | 3.09 |
| Electrical Q-factor(Qes) | 3.22 |
| Total Q-factor(Qts) | 1.58 |
| Equivalent air volume(Vas) | 28.5 L |
| Voice coil Inductance(Le) | 0.16 mH |
| Diaphragm area(Sd) | 415.5 cm² |

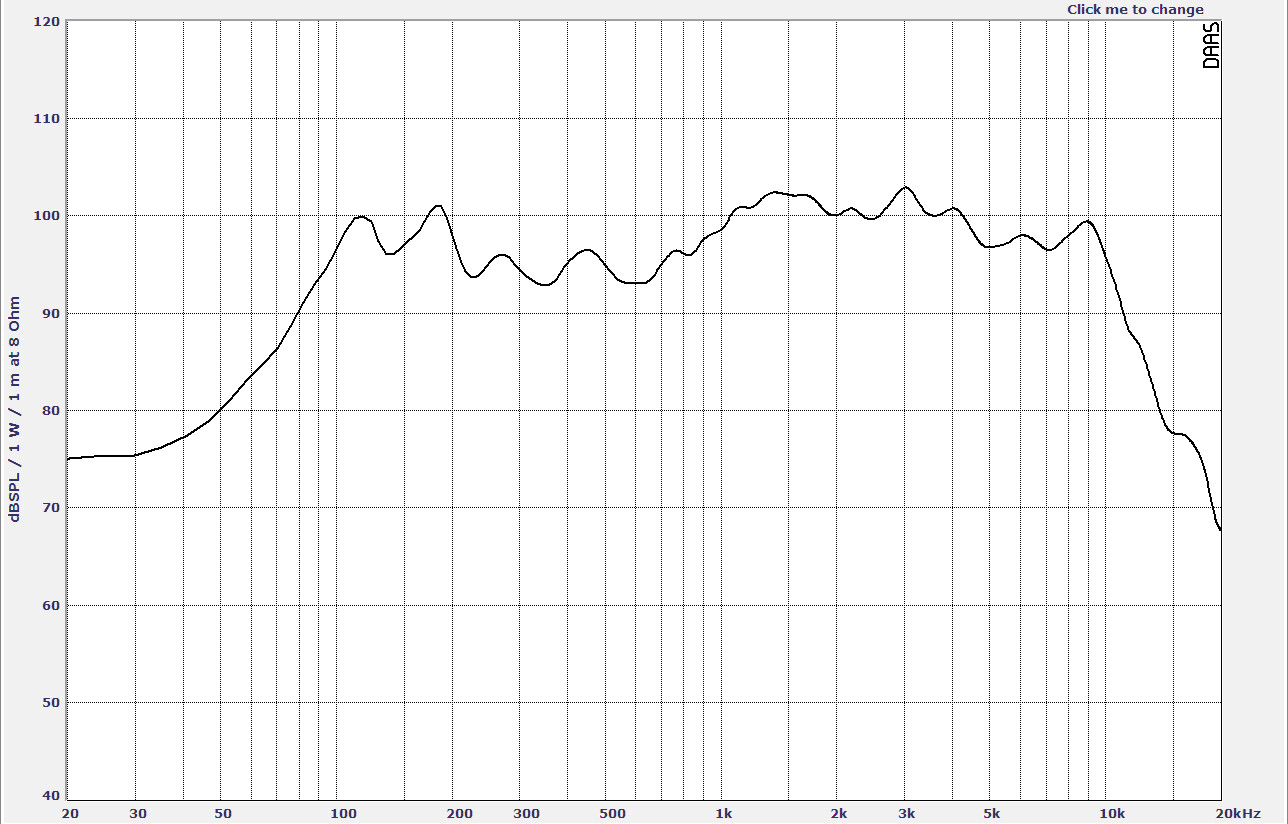

Frequency Response

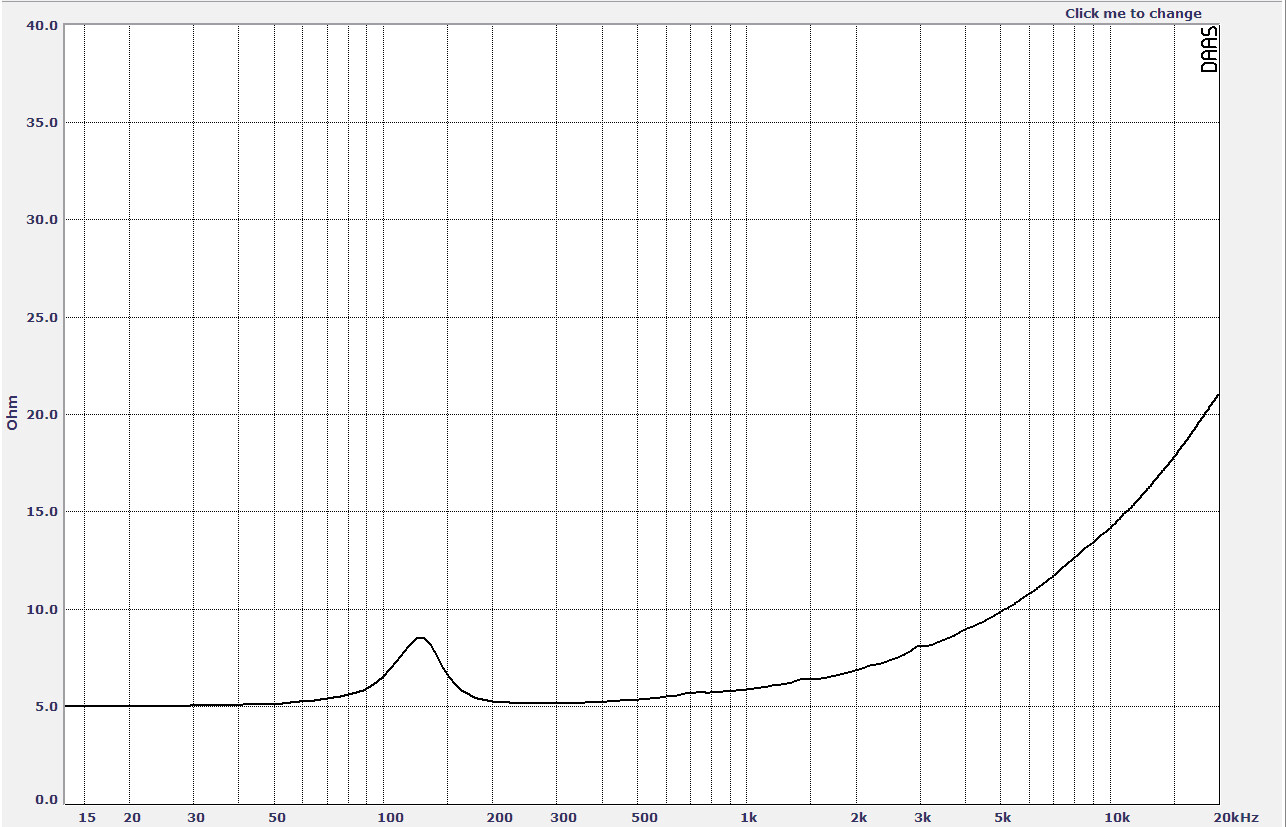

Impedence Curve

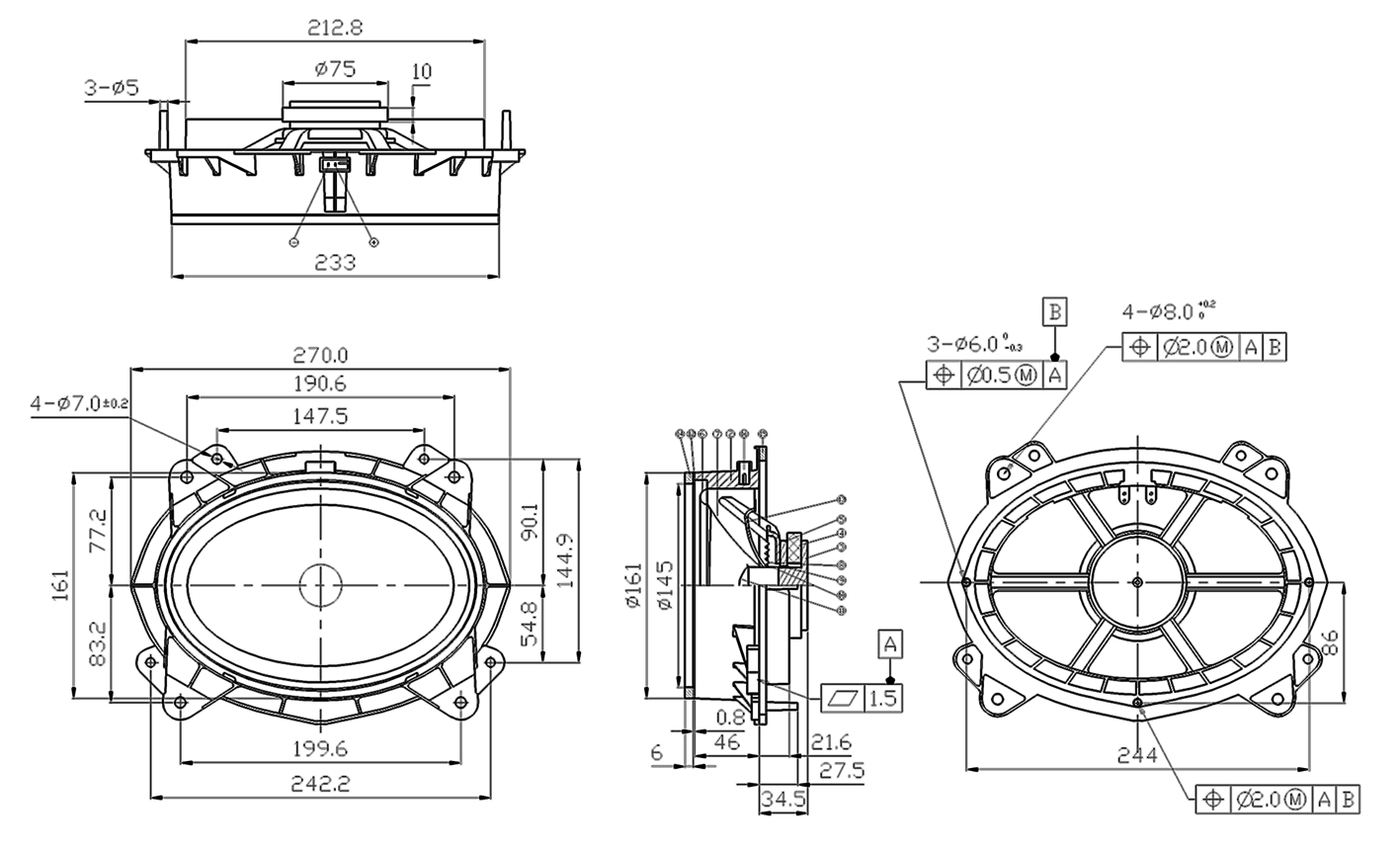

Dimensions
