SPW-1076AC 10 Inch Woofer
- 3 INCH ROUND COPPER VOICE COIL
- 91.5 dB/SPL SENSITIVITY
- 300 WATT RMS
- 75 - 2200 Hz FREQUENCY RESPONSE
GENERAL SPECIFICATIONS
| Nominal diameter | 10 inch |
|---|---|
| Nominal impedance | 8 Ω |
| Magnet weight | 76 oz |
| Power rating | 300W RMS |
| Peak power | 600W |
| Sensitivity | 91.5 dB |
| Frequency range | 75~2200 Hz |
| Voice coil diameter | 3 inch |
| basket material | Die Cast Aluminum |
| Magnet material | Ferrite |
| Coil material | Round Copper |
| Former material | Aluminum |
| Cone material | Paper |
| Surround material | Cloth |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 6.7 Ω |
|---|---|
| Resonance frequency(Fs) | 54.7 Hz |
| Moving mass(Mms) | 46.9 g |
| Compliance(Cms) | 0.18 mm/N |
| Force factor(BL) | 14.4 N/A |
| Mechanical Q-factor(Qms) | 3.06 |
| Electrical Q-factor(Qes) | 0.52 |
| Total Q-factor(Qts) | 0.45 |
| Equivalent air volume(Vas) | 29.2 L |
| Voice coil Inductance(Le) | 0.99 mH |
| Diaphragm area(Sd) | 339.8 cm² |

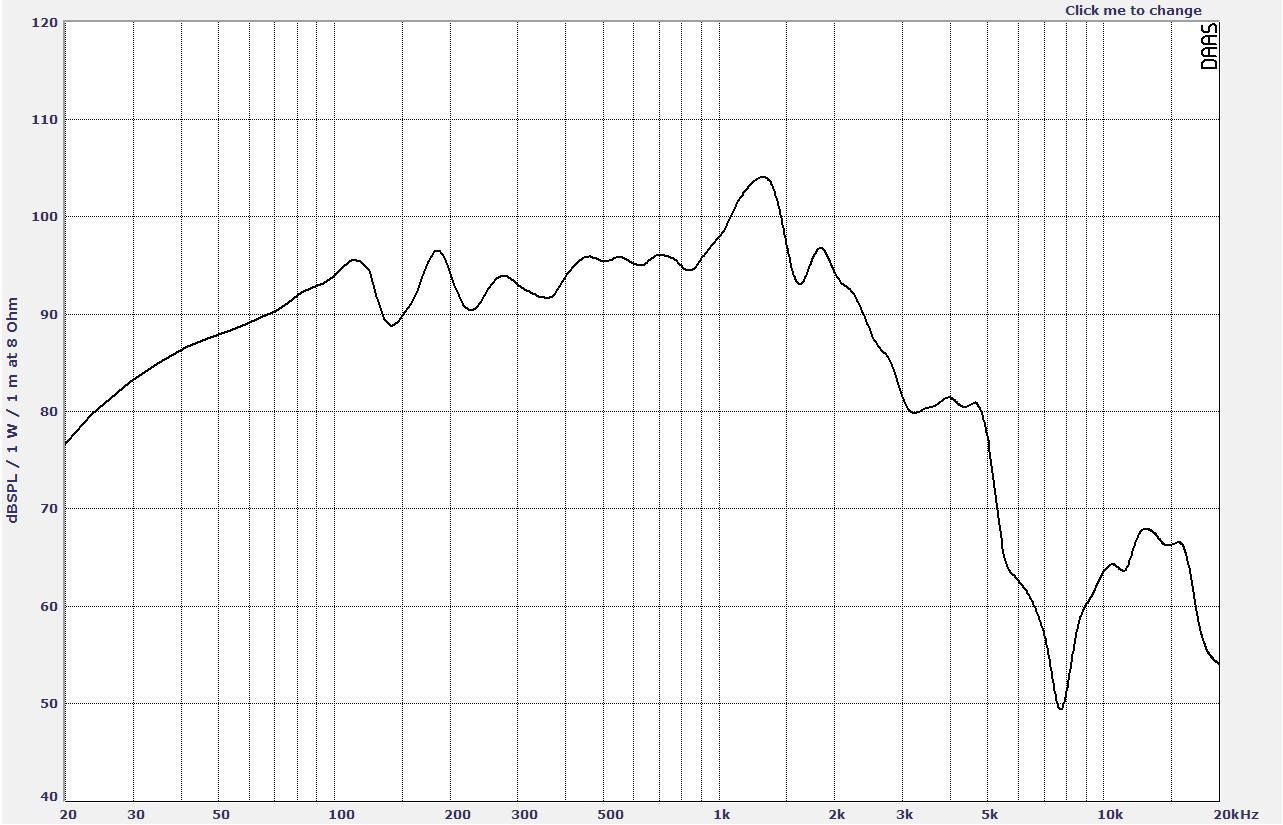

Frequency Response
Impedence Curve

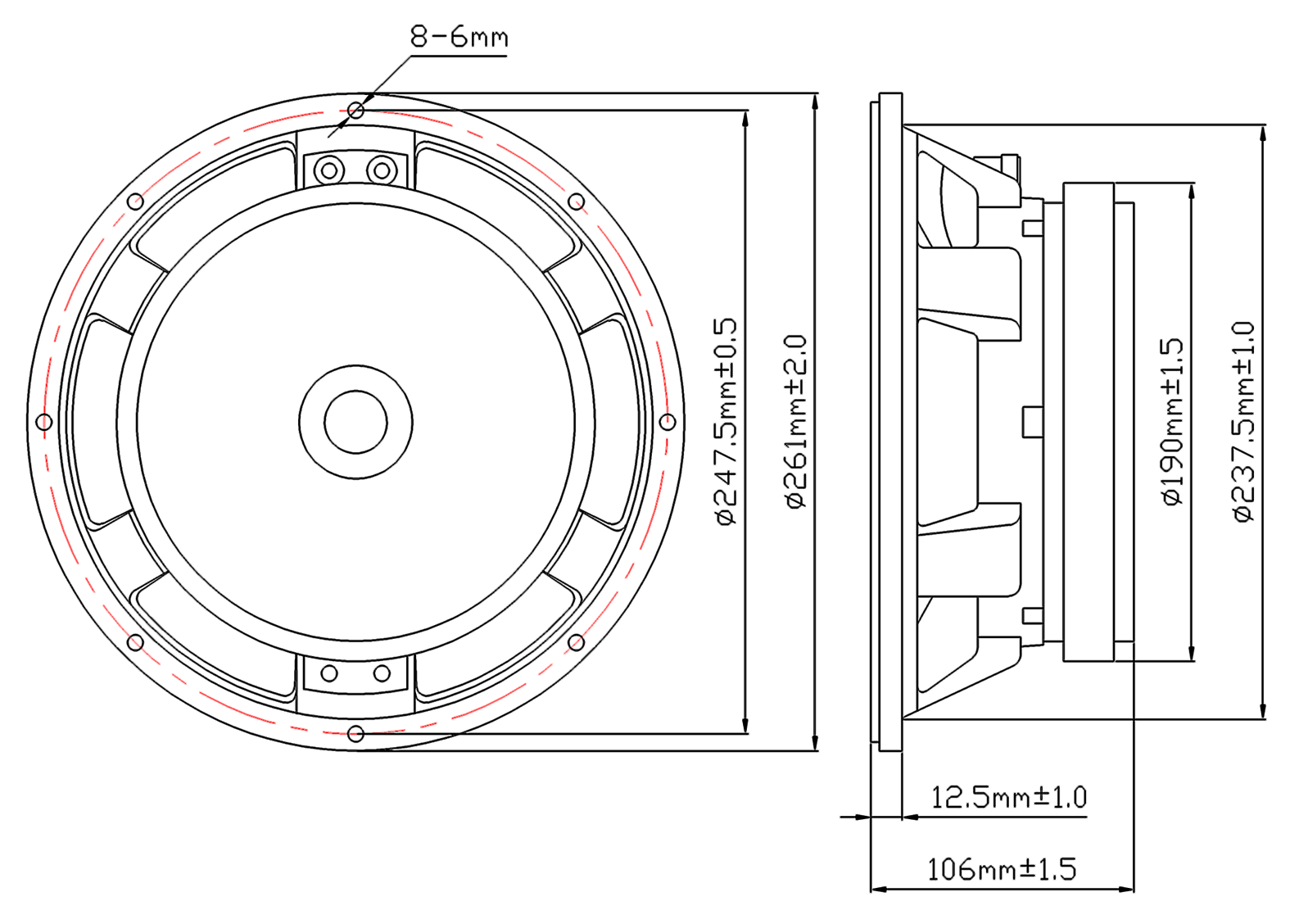

Dimensions
