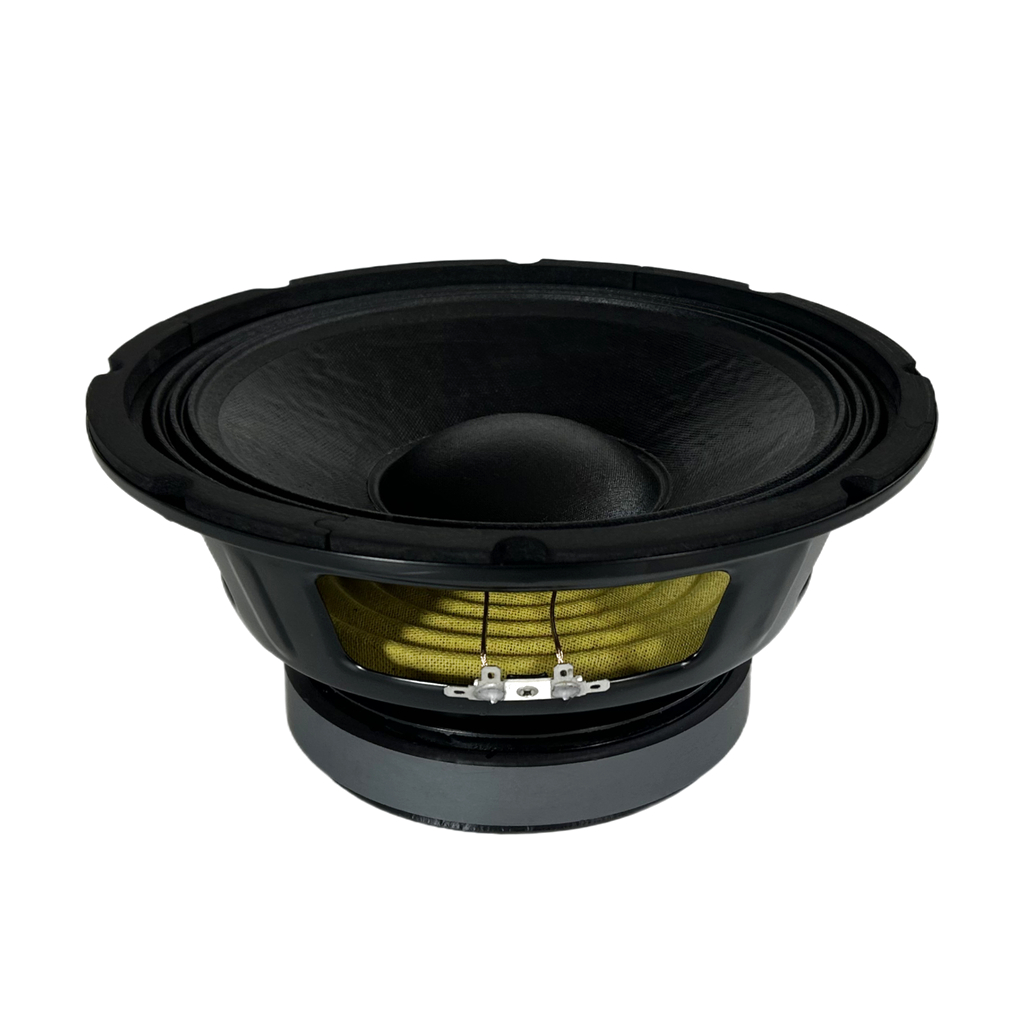

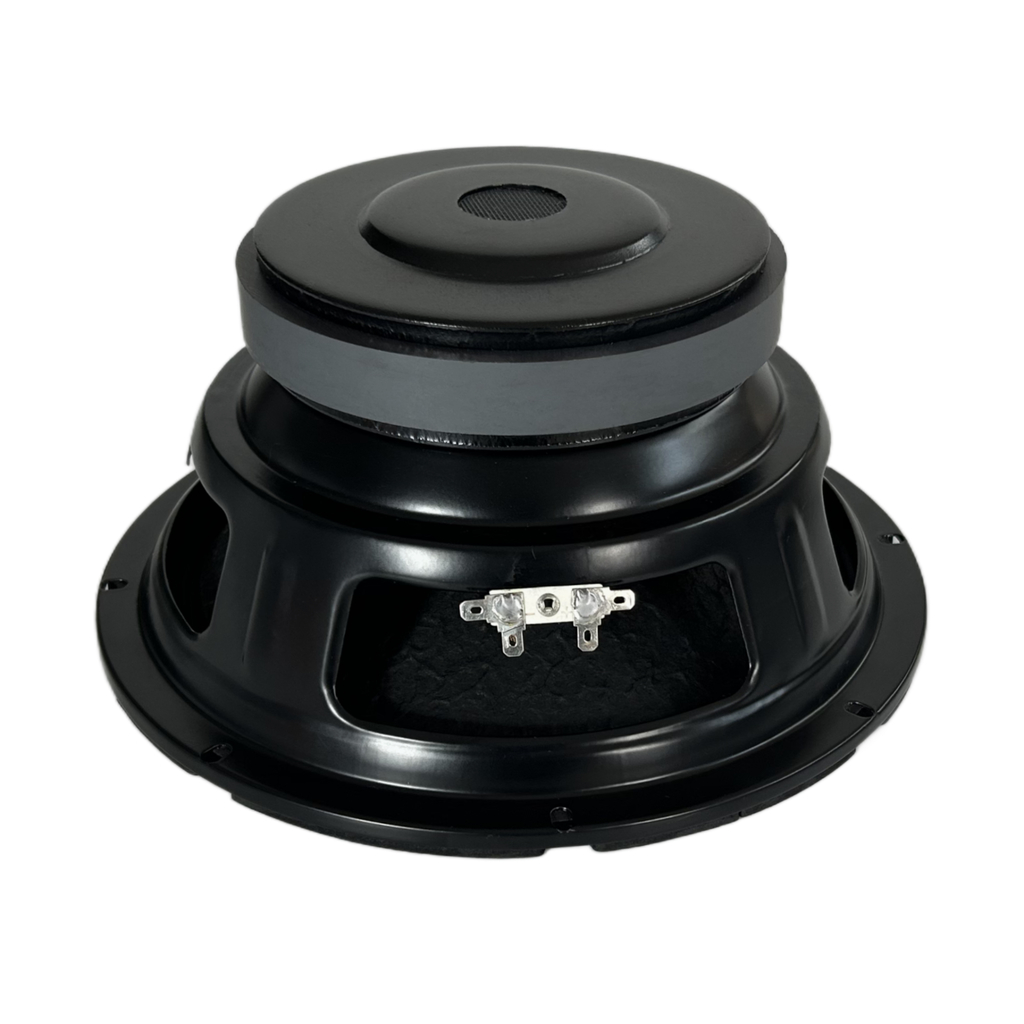

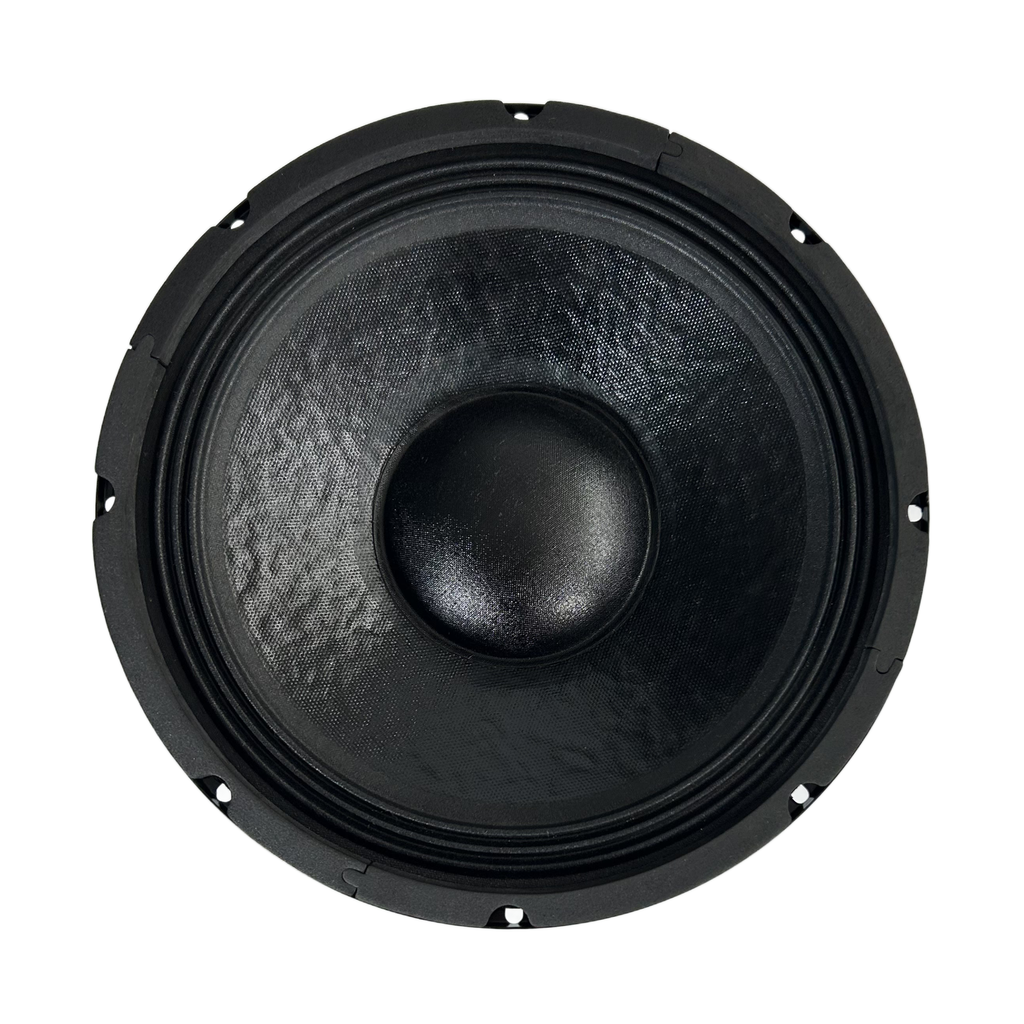

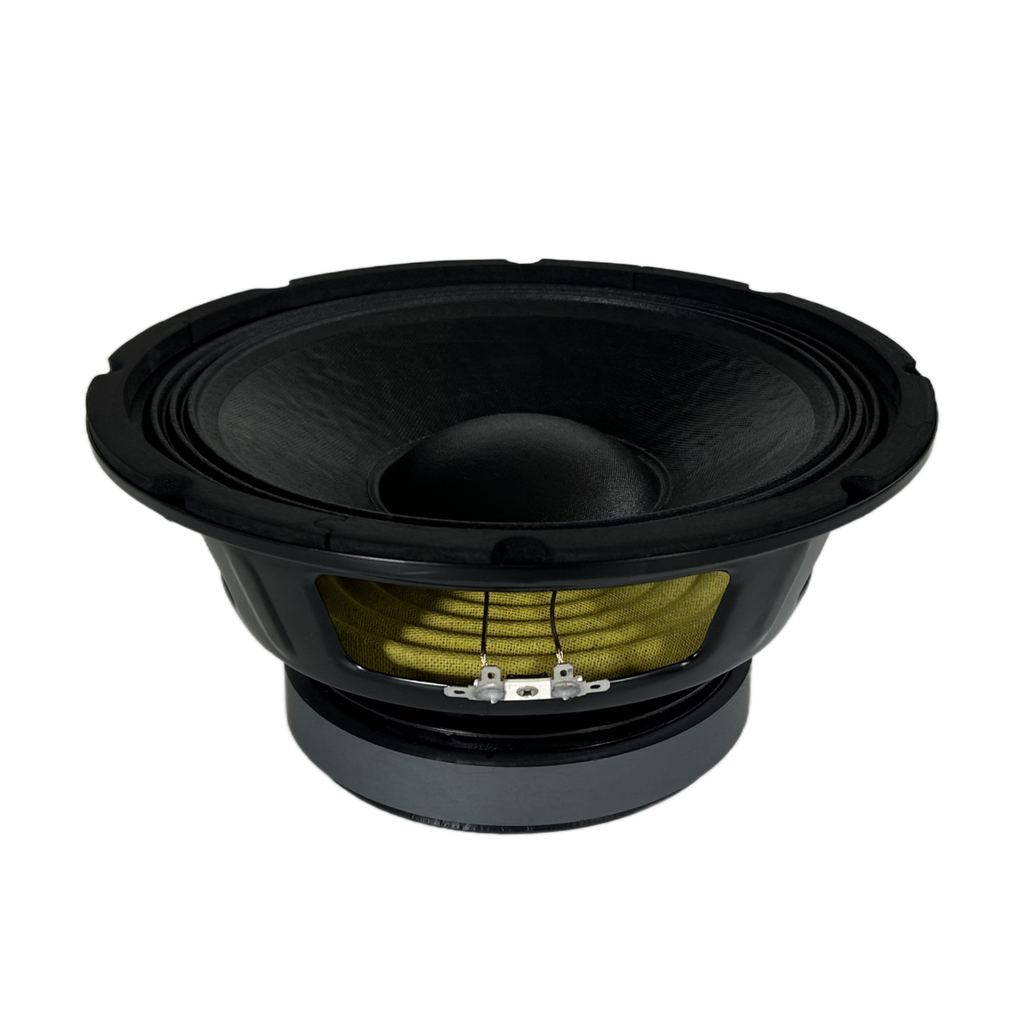

SPW-1050SC 10 Inch Woofer
- 1.5 INCH ROUND COPPER VOICE COIL
- 90.8 dB/SPL SENSITIVITY
- 250 WATT RMS
- 55 - 3200 Hz FREQUENCY RESPONSE
- 松压盆
GENERAL SPECIFICATIONS
| Nominal diameter | 10 inch |
|---|---|
| Nominal impedance | 8 Ω |
| Magnet weight | 50 oz |
| Power rating | 200W RMS |
| Peak power | 400W |
| Sensitivity | 90.8 dB |
| Frequency range | 55~3200 Hz |
| Voice coil diameter | 1.5 inch |
| basket material | Steel |
| Magnet material | Ferrite |
| Coil material | Round Copper |
| Former material | Aluminum |
| Cone material | Paper |
| Surround material | Cloth |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 6.9 Ω |
|---|---|
| Resonance frequency(Fs) | 67.6 Hz |
| Moving mass(Mms) | 41.3 g |
| Compliance(Cms) | 0.13 mm/N |
| Force factor(BL) | 11.7 N/A |
| Mechanical Q-factor(Qms) | 5.14 |
| Electrical Q-factor(Qes) | 0.88 |
| Total Q-factor(Qts) | 0.75 |
| Equivalent air volume(Vas) | 22.5 L |
| Voice coil Inductance(Le) | 0.57 mH |
| Diaphragm area(Sd) | 346.4 cm² |

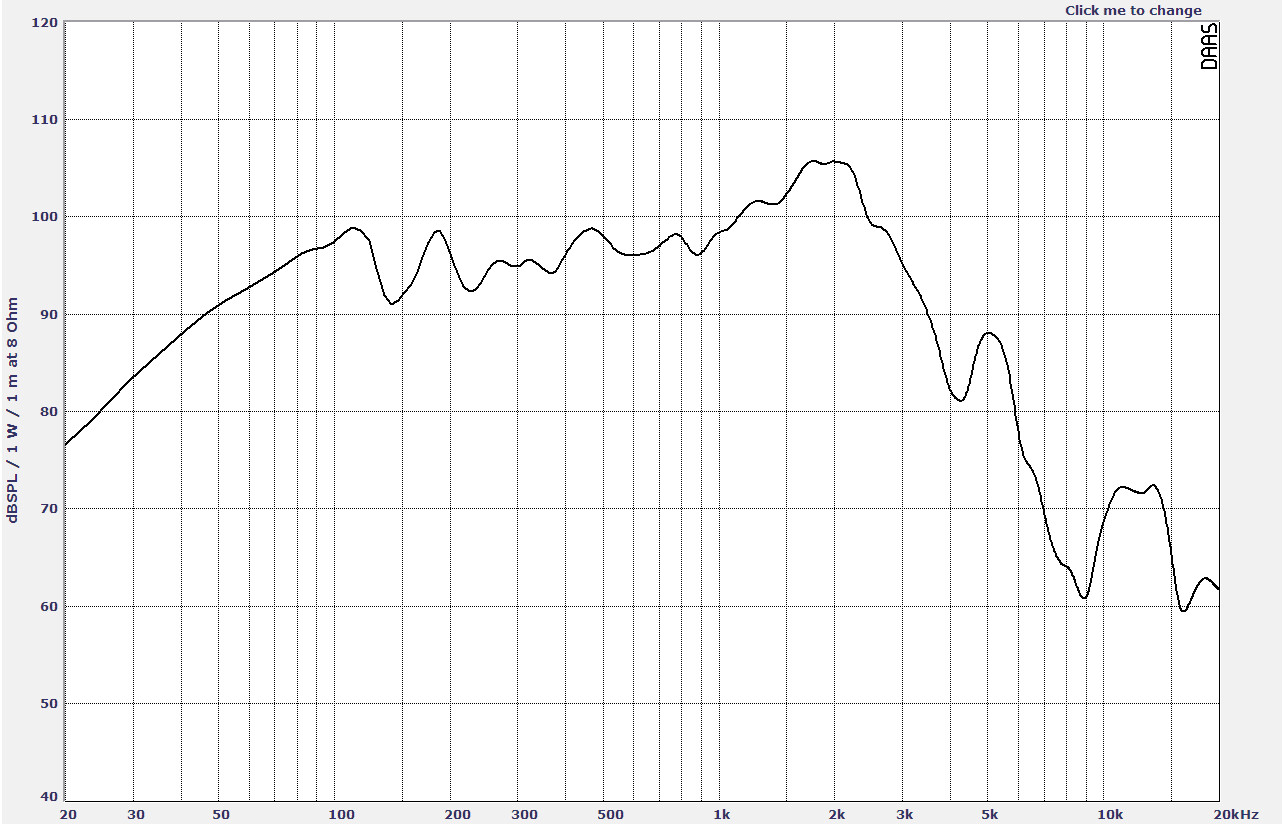

Frequency Response

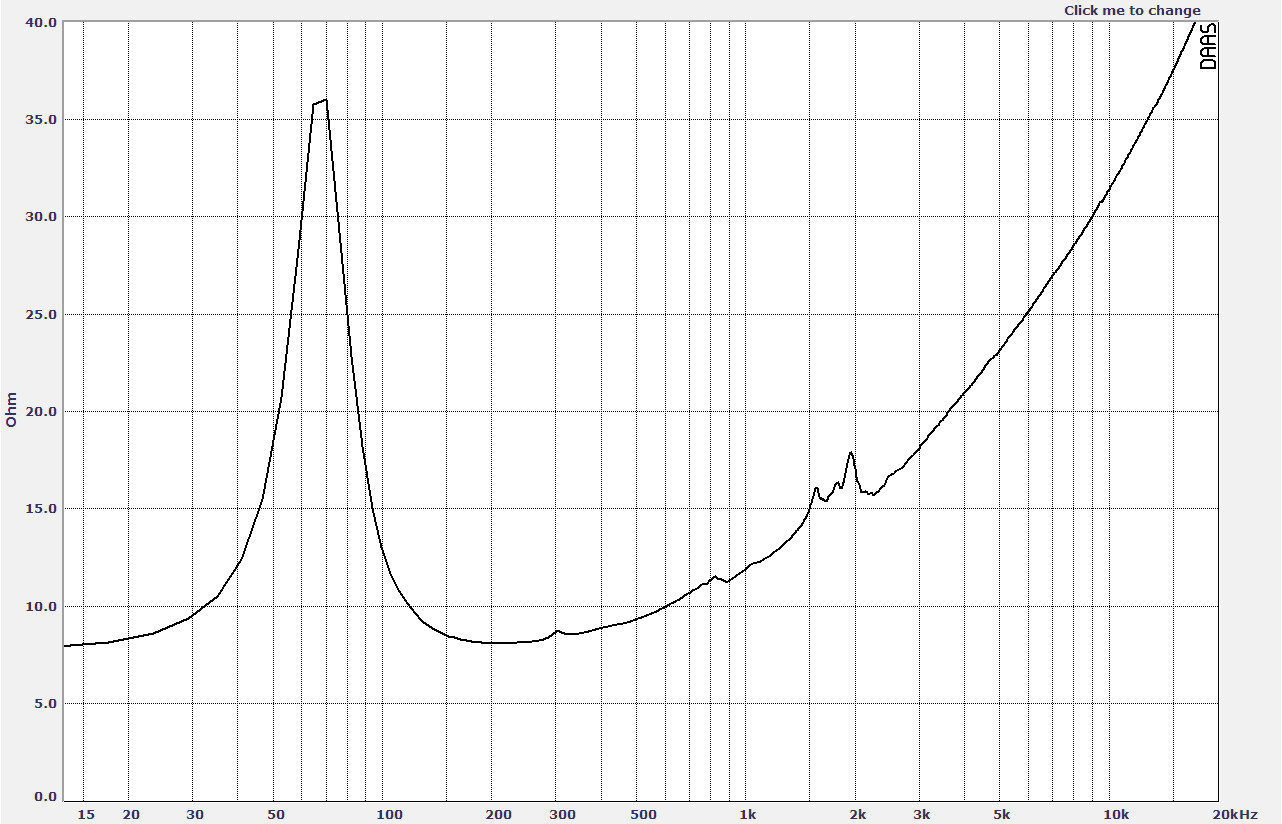

Impedence Curve

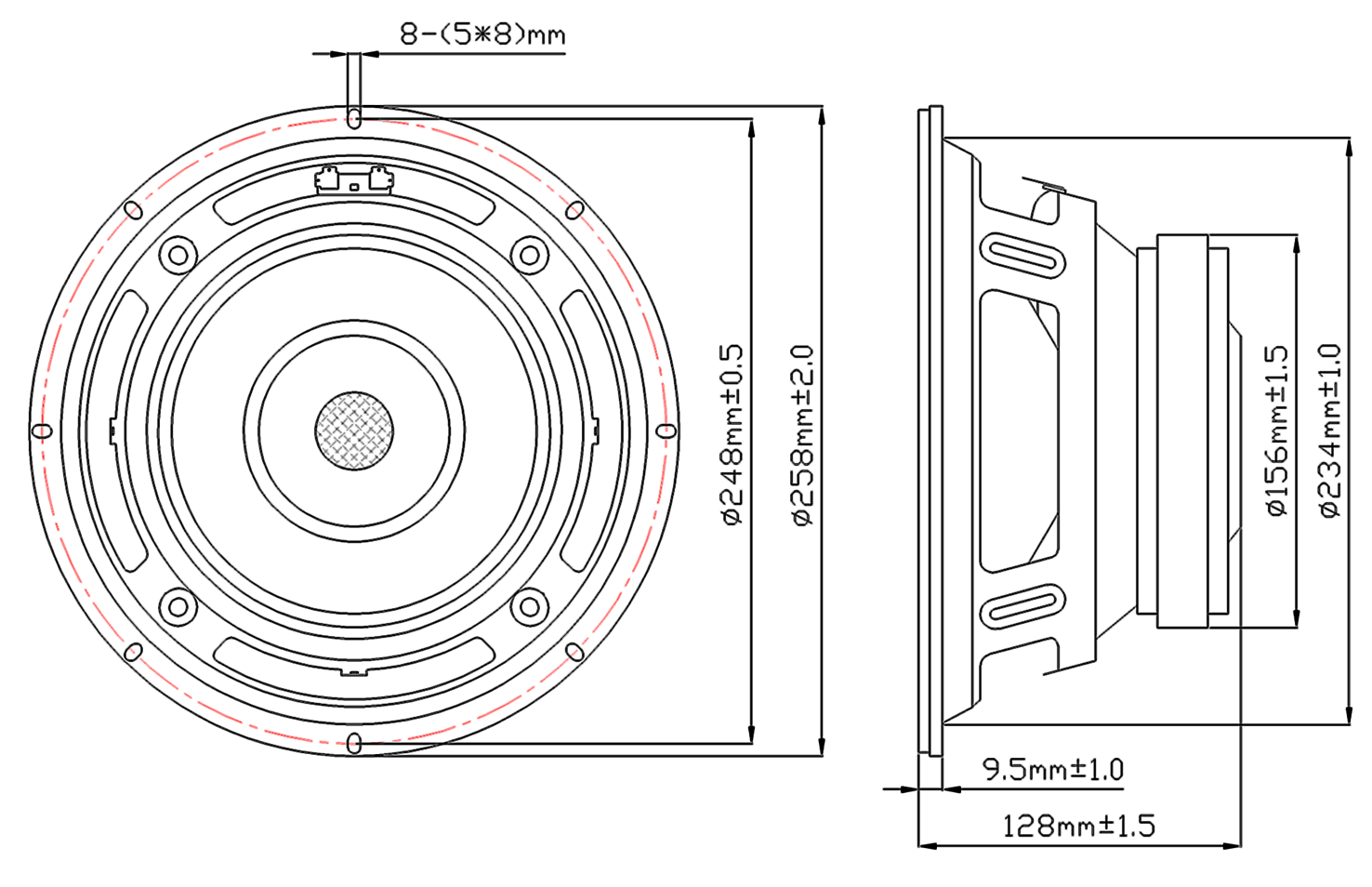

Dimensions
