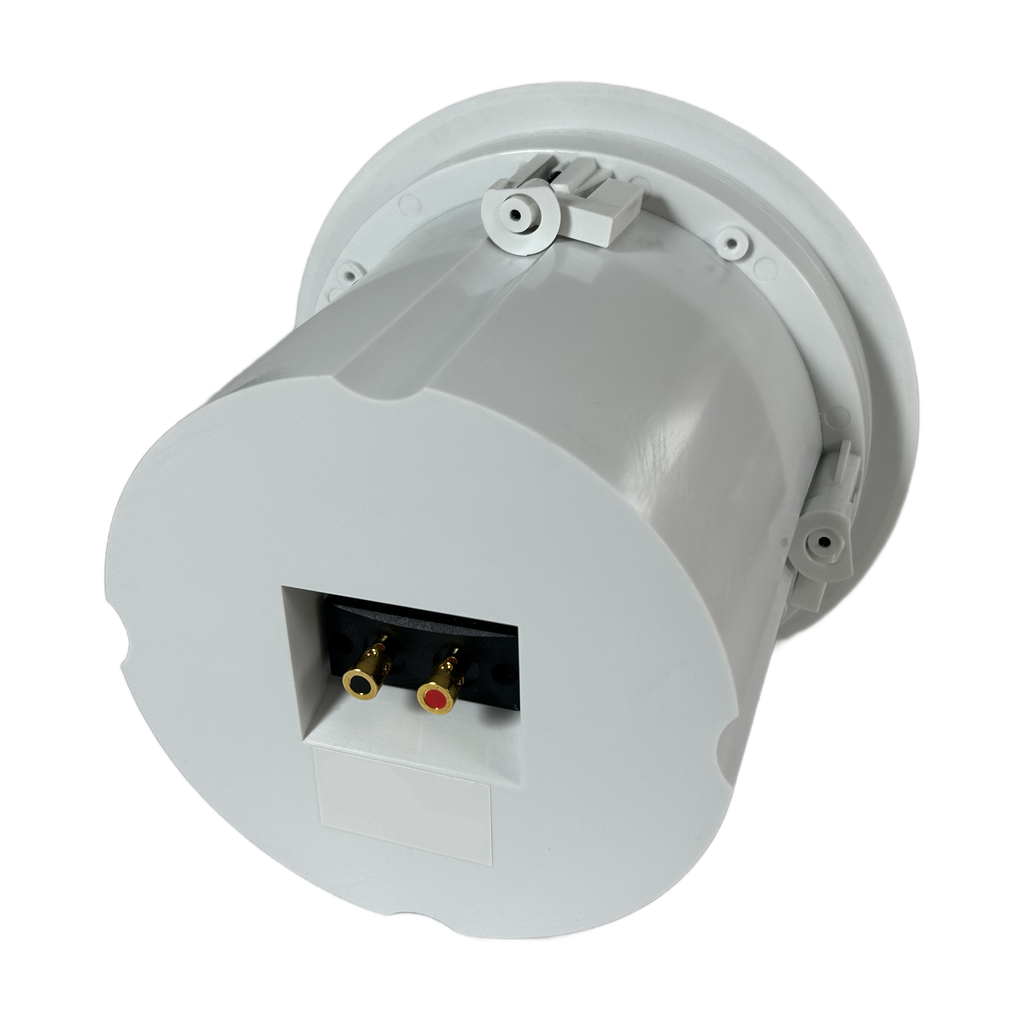

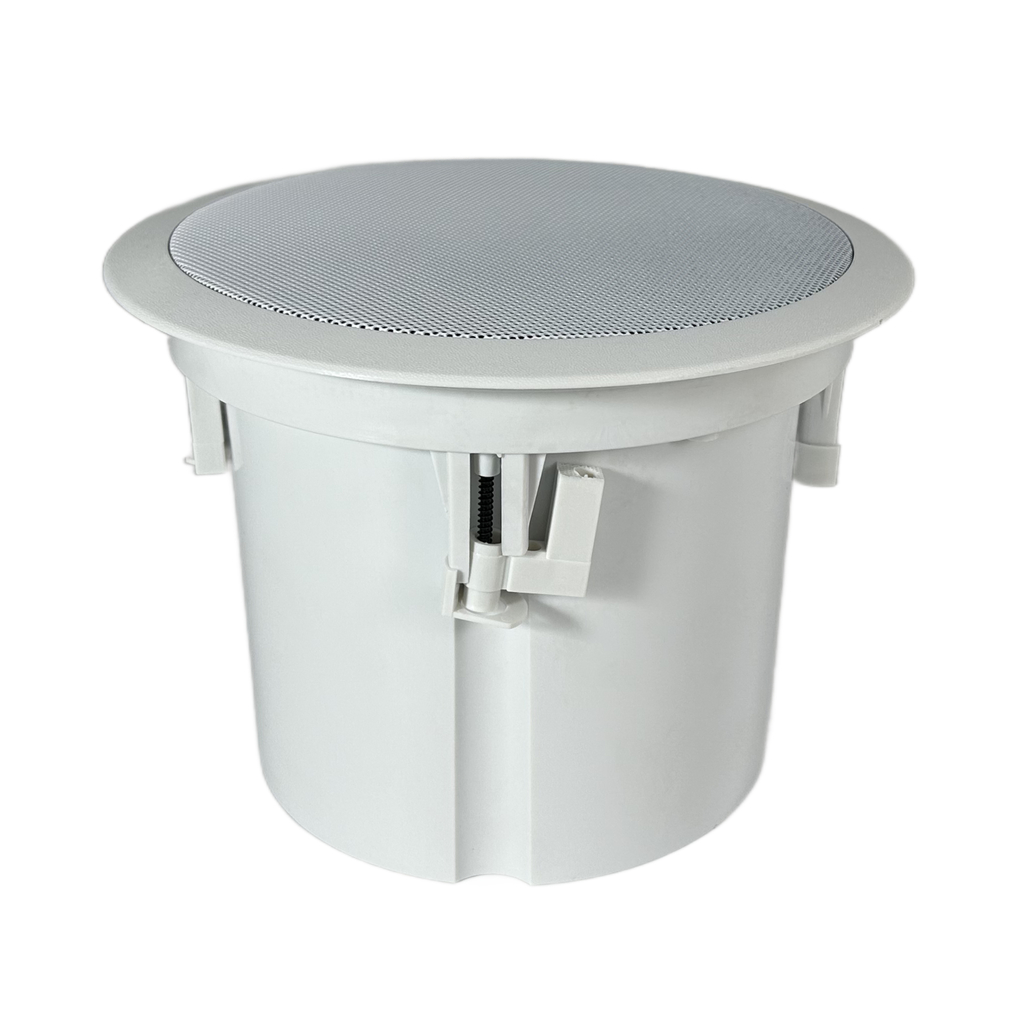

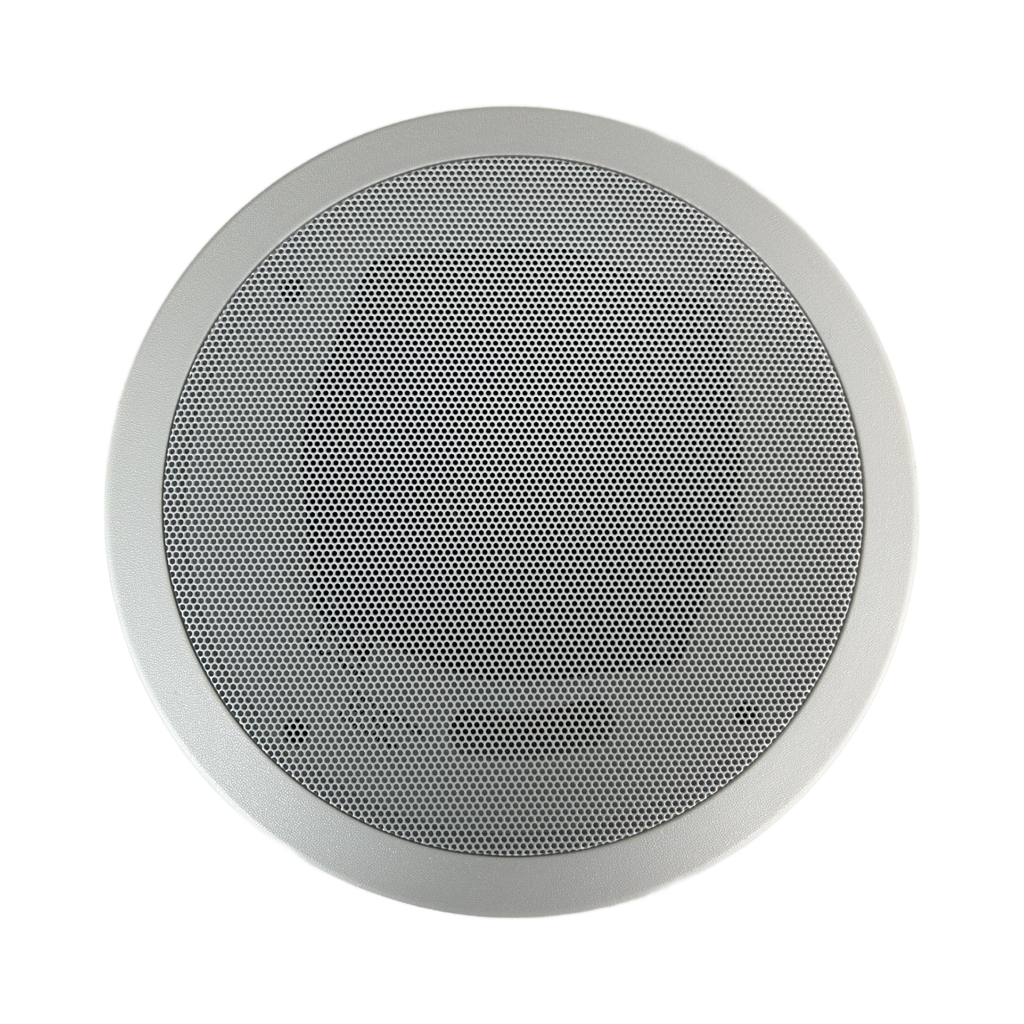

SPC-235 5.25 Inch Ceiling Speaker
- 1 INCH ROUND COPPER VOICE COIL
- 88 dB/SPL SENSITIVITY
- 40 WATT RMS
- 110 ~ 11000 Hz FREQUENCY RESPONSE
GENERAL SPECIFICATIONS
| Nominal diameter | 5.25 inch |
|---|---|
| Nominal impedance | 8 Ω |
| Magnet weight | 10 oz |
| Power rating | 40W RMS |
| Peak power | 80W |
| Sensitivity | 88 dB |
| Frequency range | 110~11000 Hz |
| Voice coil diameter | 1 inch |
| basket material | Steel |
| Magnet material | Ferrite |
| Coil material | Round Copper |
| Former material | Aluminum |
| Cone material | PP |
| Surround material | Foam |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 7.2 |
|---|---|
| Resonance frequency(Fs) | 750 Hz |
| Moving mass(Mms) | |
| Compliance(Cms) | |
| Force factor(BL) | |
| Mechanical Q-factor(Qms) | |
| Electrical Q-factor(Qes) | |
| Total Q-factor(Qts) | |
| Equivalent air volume(Vas) | |
| Voice coil Inductance(Le) | |
| Diaphragm area(Sd) |

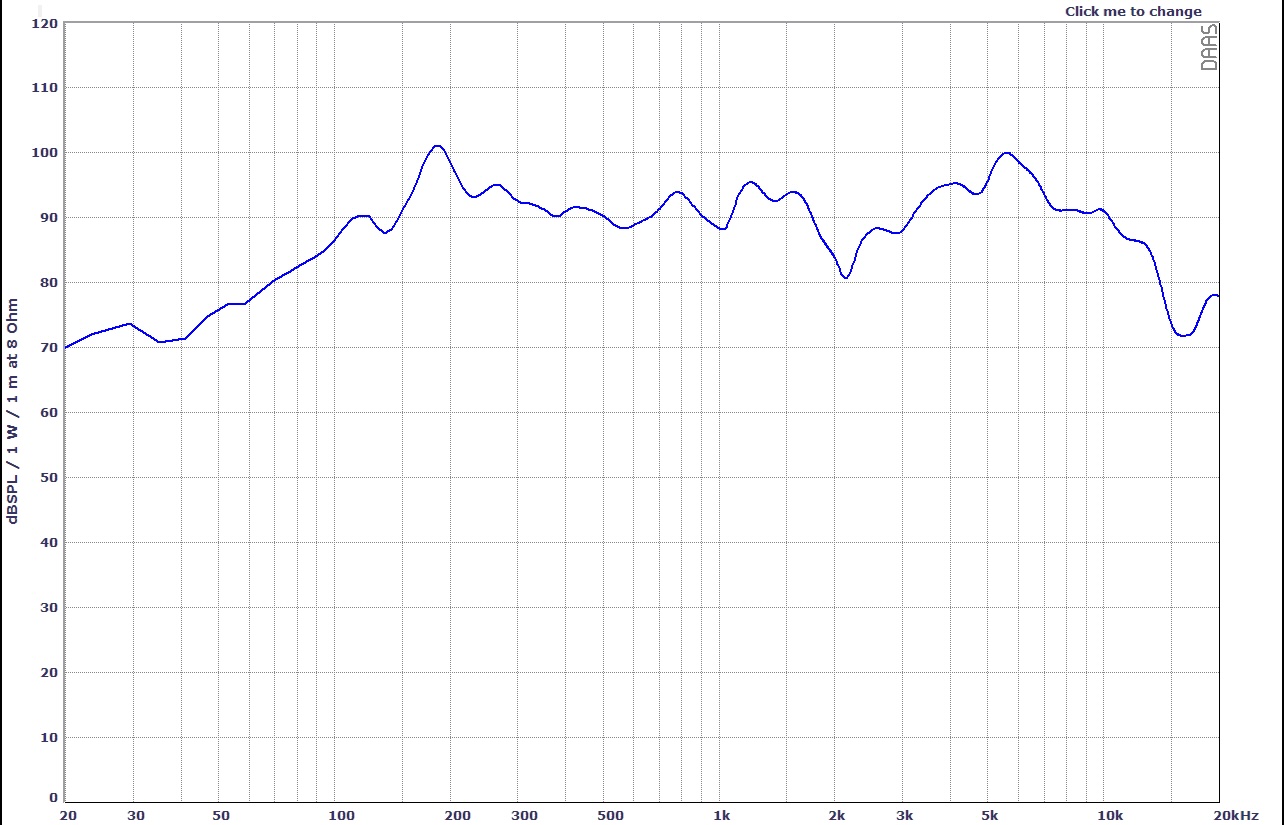

Frequency Response
Impedence Curve

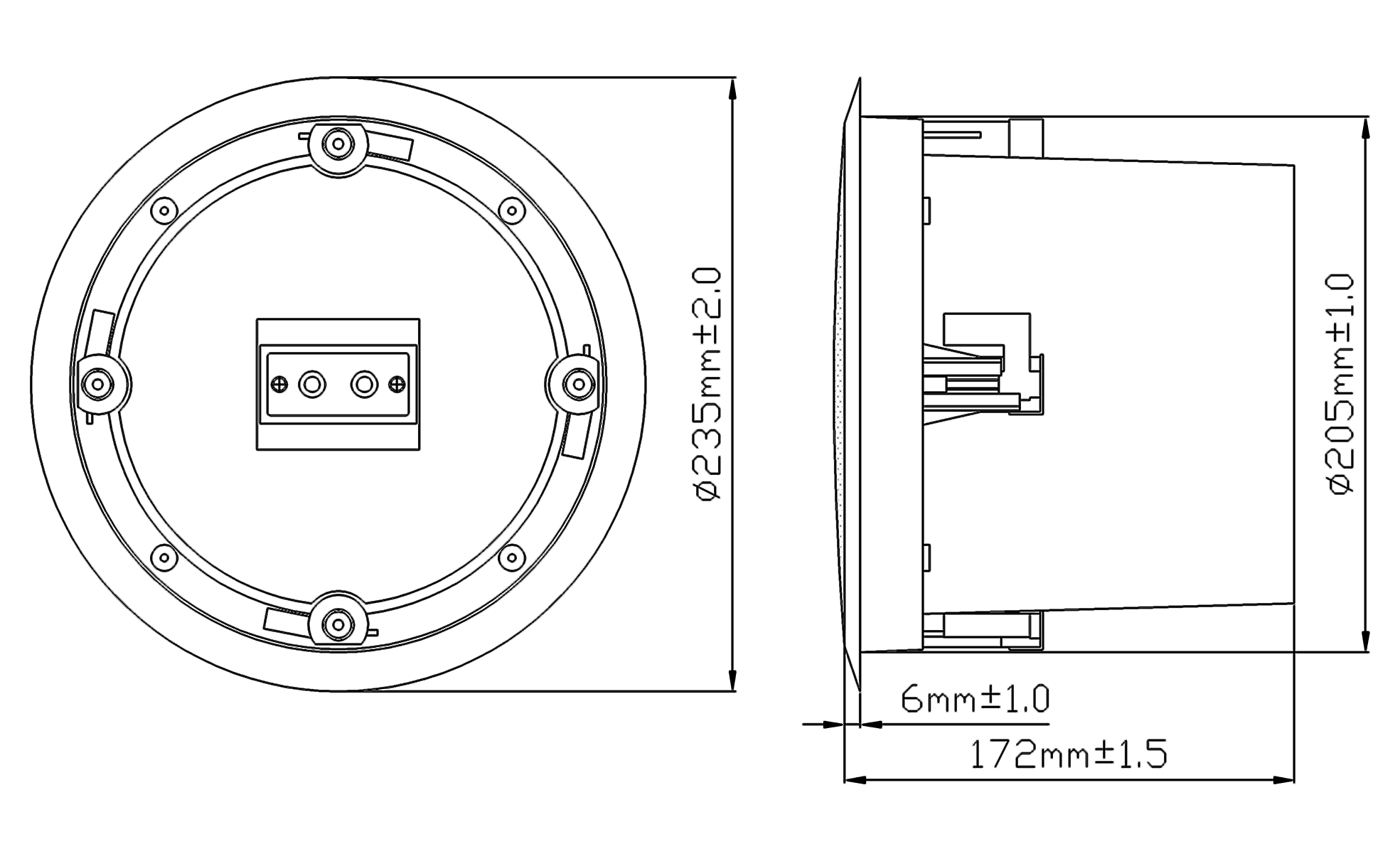

Dimensions
